High Speed Eye Drop Filling And Capping Machine Fully Automatic

High Speed Eye Drop Filling And Capping Machine Fully Automatic

High Speed Eye Drop Filling And Capping Machine Fully Automatic
High Speed Eye Drop Filling And Capping Machine Fully Automatic
High Speed Eye Drop Filling And Capping Machine Fully Automatic
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE
Model Number: YMF4C1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden case, L2300*W1200*H2100mm, 900KG
Delivery Time: 30-35 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Name: Cheap Price High Speed Fully Automatic Eye Drops Small Bottle Filling Capping Labeling Machine Filling Type: Peristaltic Pump Filling
Capping Type: Auto Feed Cap And Screw Cap Material: SS316+aluminum
Power Supply: 220V/380V, 1phase/3phase, 50-60Hz Air Supply: 0.3-0.8MPa, 5-10m³/hr
Conveyor Size: L2200*W100*H900-1100mm Liquid Hopper: 200-300L, Can Be Connect By Sensor Control
Function: Small Bottle Filling Capping Warranty: 2 Years
High Light:

eye drop filling and capping machine automatic

,

eye drop filling and capping machine

,

eye drop bottle filler and capper

Cheap Price High Speed Fully Automatic Eye Drops Small Bottle Filling Capping Labeling Machine

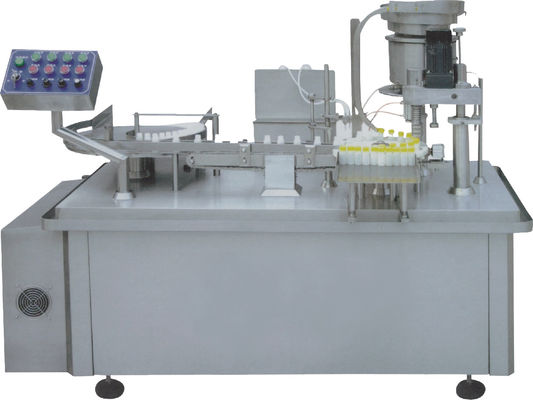

The machine is specially designed and made for Small dose filling,capping integrated machine for small volume packaging in the industry of IVD(In Vitro Diagnosis). The single/multi doses are filled, sealed and detected in one-time completion. To comply with the IVD restrictions, Cross-contamination is firmly avoided via one component one heat sealing or sealed in one time after all doses filled based on the properties of the products.

* Specialized filling and moving head for different viscosity and foam liquid.

* Applicable for high sensitive and corrosive products filling,capping. Avoid cross contamination.

* High efficient and compact all-in-one system with personalized solution, advanced technology and small space occupation.

* Filling with piston pump or peristaltic pump depends on different liquid characteristics.

* High security process to protect the products.

* Intelligent control to shorten the operation switch and pause time. Minimize the loss of materials.

* Attainable of fully inspection of single component Net weight or multi-components Gross weight.

* O-RABS,C-RABS,Isolator optional.

Technical parameter:
No
Item
Data
1
Power
4.5KW
2
Production speed
30-100 Bottles/min
3
Volume
1-50ml
4
Multi doses
8-36 chanels
5
Dimension
2000*2000*1800mm
6
Material
304/316
7
SEALING
Screw capping
8
Box packaging/label
Optional

High Speed Eye Drop Filling And Capping Machine Fully Automatic 0
High Speed Eye Drop Filling And Capping Machine Fully Automatic 1

High Speed Eye Drop Filling And Capping Machine Fully Automatic 2High Speed Eye Drop Filling And Capping Machine Fully Automatic 3High Speed Eye Drop Filling And Capping Machine Fully Automatic 4
