Customer happy, we are happy.

|
| Place of Origin: | Shanghai |
| Brand Name: | YIMU |
| Certification: | CE |
| Model Number: | YMF4C1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case, L2600*W1200*H2100mm, 900KG |
| Delivery Time: | 30-35 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30 sets per month |

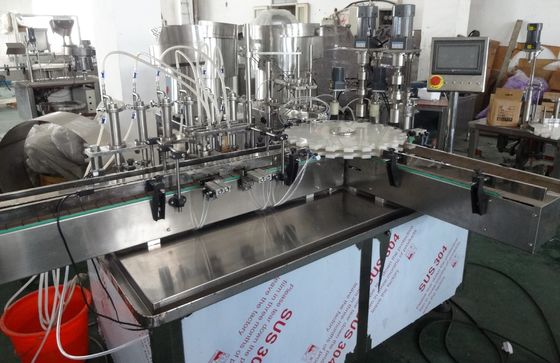

| Name: | Automatic 100ml E-Liquid Gorilla Bottle Filling Capping Machine | Material: | SS316+aluminum |
|---|---|---|---|
| Filling Type: | Servo Motor Piston Pump Filling | Power Supply: | 220V/380V, 1phase/3phase, 50-60Hz |
| Air Supply: | 0.4-0.8MPa, 5-10m³/hr | Conveyor Size: | L2200*W110*H900-1100mm |
| Filling Error: | ＜0.5% | After Warranty Service: | Online Support, Video Technical |
| High Light: | Servo Filling Capping Machine,Syrup Filling Capping Machine,100ml volumetric filling machine |
||
Functions:
Technical parameter:
| Model | Liquid Filling Capping 2in1 Machine |
| Filling nozzles | 2/4/6/8/10 (customized) |
| Capping heads | 1/2 (customized) |
| Filling speed | 15-120bottles/min |
| Filling volume | 30-500ml (customized) |
| Filling accuracy | ≤±0.5% |
| Capping rate | ≥99.9% |
| Total power | 3KW |
| Power supply | 1ph or 3ph. 220V/380V 50/60Hz (customized) |
| Machine size | L2500*W1300*H2000mm |
| Net weight | 900KG |
| Capping Type | Screwing, Pressing, Crimping and so on |
| Control system | PLC and Touch Screen |
Packing wooden case:
Contact Person: Tyson
Tel: +8617302103515
