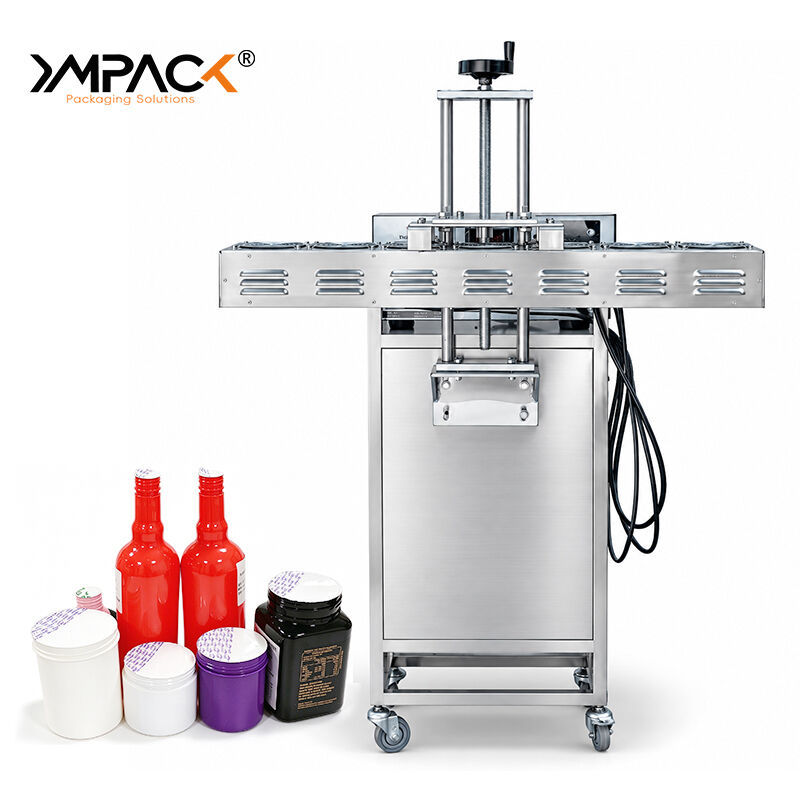

LM2000 Bottle Cap Sealing Machine Full Automatic Aluminum Foil Induction Sealing Machine

Full automatic bottle cap sealing machine with aluminum foil induction technology. High-speed, non-contact sealing for plastic & glass bottles. Ideal for food, pharma, cosmetics. Factory-direct, CE certified, global shipping.

The LM2000 Bottle Cap Sealing Machine represents a full-automatic evolution in aluminum foil induction sealing technology, designed for packaging operations that demand uninterrupted, high-speed output without compromising seal integrity. This machine transforms the sealing stage from a production bottleneck into a seamless, hands-free process that integrates directly into your existing filling and capping line.

Where semi-automatic sealers require operator involvement for each container or batch, the LM2000 operates on a continuous flow principle — containers enter the conveyor, pass beneath the induction coil, and exit with hermetic foil seals, all without manual intervention. This makes it particularly suited for facilities running multiple shifts, high-volume orders, or lean production teams where labor allocation to sealing tasks is neither practical nor cost-effective.

The machine is engineered around a modular architecture: the induction power supply, sealing head assembly, conveyor system, and control interface are distinct functional modules that can be configured, upgraded, or serviced independently. This design philosophy reduces downtime — a failed component can be swapped without replacing the entire system — and allows the LM2000 to adapt as your production requirements evolve.

The LM2000's full-automatic operation is best understood as a continuous thermal process that unfolds in four distinct stages as each container travels the length of the conveyor.

Stage 1: Infeed and Positioning

Containers arrive from your filling/capping line via a synchronized infeed conveyor or manual loading station. Guide rails — adjustable for different bottle diameters — center each container as it enters the sealing zone. The conveyor's variable-frequency drive allows speed matching to your upstream equipment, preventing accumulation or starvation.

Stage 2: Induction Coil Engagement

As the capped container passes beneath the sealing head, the induction coil — energized by the high-frequency power supply — generates an oscillating electromagnetic field. This field passes through the plastic cap and container wall without affecting them, targeting only the aluminum foil liner inside the cap. Eddy currents induced in the foil generate heat within milliseconds, and this heat transfers to the polymer sealing layer .

Stage 3: Controlled Energy Delivery

The LM2000's closed-loop control system monitors power output throughout the sealing cycle. Unlike machines with fixed power settings, the LM2000 adjusts in real time to compensate for:

• Line voltage fluctuations

• Variations in container wall thickness

• Changes in cap-liner composition between batches

• Conveyor speed adjustments

This ensures each container receives the precise energy dose required for a proper seal — no under-sealing that compromises integrity, no over-sealing that damages the liner or distorts the cap.

Stage 4: Cooling and Discharge

Immediately after passing beyond the coil, the molten polymer begins to cool. The foil remains bonded to the container rim as the polymer solidifies, creating a hermetic, tamper-evident membrane. Containers discharge onto the outfeed conveyor and proceed to labeling, coding, or packing stations.

The LM2000's full-automatic design eliminates the labor dependency that constrains semi-automatic sealing operations. Once configured for your container type and line speed, the machine runs continuously without operator intervention. This translates to:

• Lower labor costs — operators can be redeployed to higher-value tasks

• Consistent output — no fatigue-related variation in seal quality across shifts

• Higher throughput — no time lost to manual loading and unloading cycles

The PLC-based control system interface provides:

• Recipe storage for different container/liner combinations — recall settings instantly when switching products

• Real-time monitoring of power output, conveyor speed, and system status

• Alarm logging for troubleshooting and preventive maintenance

• Multi-language interface for global operations

The 304 stainless steel frame and conveyor components resist corrosion from washdown cleaning and are compatible with food-grade sanitation requirements. Unlike painted steel or aluminum frames that degrade over time, stainless steel maintains its structural integrity and appearance across years of operation.

The forced-air cooling system eliminates:

• Water pumps and their associated seals, bearings, and electrical connections

• Risk of coolant leaks contaminating production areas

• Regular water quality maintenance and disposal

• The need for drainage infrastructure near the production line

For facilities without existing water-cooling infrastructure, the LM2000 can be installed and operational within hours rather than days.

The LM2000 seals containers made from:

• PET — beverage, food, cosmetic bottles

• HDPE/LDPE — pharmaceutical, chemical containers

• PP — food, cosmetic, industrial packaging

• PS — dairy, cosmetic containers

• PVC — specialty applications

• Glass — premium food, beverage, and cosmetic packaging

For sauces, juices, oils, condiments, honey, and specialty foods:

• Leak prevention during long-distance transport and distribution

• Freshness retention for products where aroma and flavor are key differentiators

• Visual quality assurance — a clean, intact foil seal reassures consumers at point of purchase

Premium cosmetic brands cannot tolerate leakage or contamination in the supply chain. Induction seals provide:

• Hermetic protection for natural and organic formulations without preservatives

• Professional presentation upon consumer opening

• Compatibility with glass and acrylic packaging used in luxury segments

Chemical and agrochemical products require robust sealing for:

• Hazardous material containment during transport

• Moisture-sensitive formulations (powders, granules)

• Extended storage stability in varied environmental conditions

As a direct manufacturer, we control every stage of production from component sourcing to final testing. This means:

• Transparent pricing without distributor markups

• Customization capability — voltage, sealing diameter, conveyor length, and control interfaces can be adapted to your specific requirements

• Spare parts availability from the original production source

• Direct technical support from engineers who understand the machine's design

Every LM2000 unit undergoes:

• Pre-assembly component inspection for critical electrical and mechanical parts

• Full-power burn-in testing before shipment

• Sealing performance verification with sample containers

• Documentation package including test reports, wiring diagrams, and operation manuals

• 1-year comprehensive warranty covering parts and labor

• Remote technical support via video call and email

• On-site installation and training available for volume orders

• Spare parts inventory maintained for rapid shipment

Q1: What is the difference between this full-automatic model and a semi-automatic induction sealer?

The full-automatic LM2000 requires no operator involvement during production — containers feed automatically, pass beneath the sealing head, and discharge sealed. Semi-automatic models require an operator to place each container or batch under the sealing head. For production volumes above 1,000 units per shift, the full-automatic model typically delivers lower total cost of ownership through reduced labor and higher throughput.

Q2: What types of containers and caps are compatible?

The LM2000 seals non-metallic containers including PET, HDPE, LDPE, PP, PS, PVC, and glass. Caps must be plastic (screw-on, snap-on, or flip-top) and accommodate induction liners. Metal caps and metal containers cannot be sealed using this technology.

Q3: How do I determine the correct sealing settings for my product?

Each container-liner-cap combination has a specific operating window. We provide a step-by-step procedure for determining this window during setup. The PLC recipe system allows you to store and recall settings for different products. As a starting point, most applications run successfully at 50-70% power with conveyor speed matched to your line rate.

Q4: Can the LM2000 be integrated into an existing production line?

Yes. The LM2000 is designed for integration with upstream filling/capping equipment and downstream labeling/coding/packing stations. We can provide matching conveyor heights, speeds, and control interfaces. For lines with specific space constraints, we offer compact configurations and custom conveyor lengths.

Q5: What maintenance does the LM2000 require?

Routine maintenance is minimal: daily inspection of the sealing head for debris, weekly cleaning of air filters, and periodic verification of conveyor belt tension and alignment. The forced-air cooling system requires no water treatment or coolant replacement. We provide a detailed maintenance schedule in the operation manual.

Q6: What is the typical lead time and shipping method?

Standard configurations ship within 20-30 business days. Custom configurations may require additional time. We ship worldwide via sea freight (cost-effective for full machines) or air freight (faster for urgent orders). All units are professionally crated for international transport.

Q7: Is training provided for operators?

Every LM2000 includes a comprehensive operation manual and video tutorial library. For volume orders, we offer on-site installation and training by our technical engineers. Remote support via video call is available for all customers.

Q8: How does the LM2000 compare to competitors' full-automatic induction sealers?

The LM2000 differentiates on three dimensions: control precision (closed-loop power regulation vs. fixed settings), cooling design (air-cooled vs. water-cooled), and customization (factory-direct configuration vs. catalog-standard units). For applications requiring consistent seal quality across variable line conditions, the LM2000's closed-loop control provides a measurable advantage.
