Full Automatic LM2000 Industrial Sealing Machine — Aluminum Foil Induction Sealer for Continuous Production Lines

LM2000 industrial-grade full automatic aluminum foil induction sealing machine for continuous production lines. Non-contact hermetic sealing for plastic and glass containers in food, pharma, cosmetics, and chemical packaging. Factory-direct, CE certified.

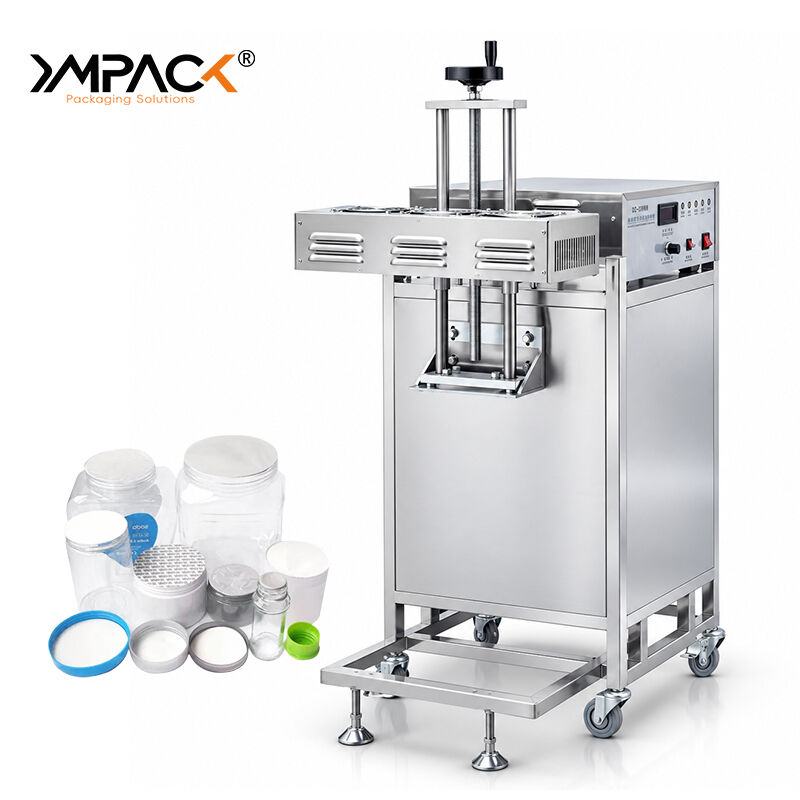

The LM2000 Industrial Sealing Machine is a full-automatic aluminum foil induction sealer specified for continuous industrial production rather than intermittent or batch operation. That distinction is not marketing language — it determines how the machine is built, how it is specified, and what it can be asked to do.

Industrial packaging lines do not run in convenient cycles. Filling, capping, sealing, labeling, and packing equipment operate in a continuous chain, and the sealing stage must hold its place in that chain for the duration of a shift, a week, and a production campaign. A sealing machine that performs well in a demonstration but drifts under sustained duty becomes the constraint that slows the entire line — and constraint identification is exactly what production managers are paid to avoid.

This machine is engineered for that operating reality. Its power delivery is regulated rather than fixed, so seal quality does not depend on the plant electrical supply remaining perfectly stable. Its forced-air cooling system maintains sealing head temperature across continuous duty without the failure modes that water cooling introduces. Its stainless steel construction is specified for the washdown cleaning and chemical exposure common in food and pharmaceutical production. And its control interface supports establishing and repeating a verified operating window rather than requiring operators to find acceptable settings by trial and error each shift.

It is designed for manufacturers and contract packers in food, beverage, pharmaceutical, nutraceutical, cosmetic, personal care, and chemical categories, sealing PET, HDPE, LDPE, PP, PS, PVC, and glass containers with cap openings from 20 mm to 130 mm. Container formats span narrow-neck bottles through wide-mouth jars, with custom sealing heads available for non-standard diameters. As a factory-direct product, voltage, conveyor dimensions, and control interface are configurable at the point of order — because industrial lines rarely accept a catalog-standard configuration.

Core Specifications

How It Works: Induction Sealing in Continuous Industrial Operation

The sealing physics behind the LM2000 are the same induction process used across all foil sealing equipment. What makes this machine an industrial sealer is how it behaves when that process runs continuously, under load, in a real plant environment.

The Sealing Cycle

Capped containers enter the conveyor and are centered by adjustable guide rails. As each container passes beneath the induction coil, the coil — energized by a high-frequency power supply — generates an oscillating magnetic field. That field passes through the container wall without interacting with it and acts only on the aluminum foil liner seated inside the cap.

Eddy currents induced in the foil generate heat within milliseconds. The heat transfers into the polymer sealing layer, which melts and bonds to the flat rim of the container opening. Nothing heated touches the product, the container, or the cap exterior. The container clears the coil, the polymer solidifies within seconds, and a hermetic, tamper-evident membrane is complete.

What Continuous Duty Changes

A sealing machine in intermittent operation has time to recover between cycles. In continuous industrial operation, it does not. Heat accumulates in the coil and power electronics, and if it is not managed, output drifts — which shows up as seal inconsistency later in the shift rather than immediately.

The LM2000's forced-air cooling system is specified for this duty pattern. Airflow is directed at the coil and heatsink assembly where heat actually accumulates, keeping the sealing head within its operating range across sustained production. Because the system uses air rather than water, it achieves this without pumps, coolant loops, or drainage — the failure modes that turn water-cooled industrial sealers into maintenance projects.

What Regulated Power Delivery Changes

Industrial plants share electrical supply across compressors, welders, motors, and HVAC systems. Voltage at the packaging line fluctuates. A sealing machine with fixed power settings delivers varying energy as a result — and varying energy produces varying seals.

The LM2000 regulates its output to maintain consistent energy delivery across supply fluctuation. This is the difference between a machine that produces acceptable seals in a demonstration and one that produces acceptable seals during a full production campaign.

What the Operator Controls

Three variables matter: sealing power, conveyor speed, and sealing head height. These are tuned during a trial run using your actual containers and liners until the full sealing surface bonds consistently. Once established, the operating window is recorded and can be recalled for repeat production. Changeover between SKUs becomes a matter of recalling settings and adjusting guide rails and head height — not re-engineering the process.

Product Advantages

1. Specified for Continuous Industrial Duty

This is not a machine that performs well in short bursts and needs recovery time between them. Coil cooling, power regulation, and component selection are all specified for sustained production — the operating pattern that industrial packaging lines actually require.

2. Regulated Power Delivery for Consistent Seals

Output is regulated rather than fixed, maintaining consistent energy delivery across the voltage fluctuation that characterizes real plant electrical supply. Stable energy delivery is what produces stable seals across a full shift, not just the first hour.

3. Non-Contact Sealing Preserves Product Integrity

Nothing heated touches the container, the cap exterior, or the contents. For temperature-sensitive products — dairy, juices, probiotics, active-ingredient cosmetics, effervescent pharmaceuticals — this removes an entire category of quality risk rather than merely reducing it.

4. Wide Container and Cap Compatibility

The machine seals PET, HDPE, LDPE, PP, PS, PVC, and glass containers, with standard sealing heads covering 20–130 mm cap openings. That range spans the bottle and jar formats used across beverages, sauces, cosmetics, pharmaceuticals, and household chemicals, allowing one machine to serve multiple lines or SKUs.

5. Stainless Steel Construction for Industrial Environments

The stainless steel frame and industrial-grade components resist corrosion from washdown cleaning and the acidic or chemical residue that accumulates around filling lines. This is construction specified for the environment the machine will work in, not for a showroom.

Problems Solved & Application Scenarios

Food, Sauce & Condiment Lines

Leakage in transit is among the costliest failure modes in liquid food packaging — one failed seal can damage an entire case and trigger a retailer claim. Induction sealing produces a full-perimeter bond that survives distribution and retail display, and the stainless steel construction withstands the residue that accumulates around sauce filling lines.

Beverage & Liquid Food Production

Juices, teas, functional drinks, and liquid supplements depend on barrier protection to preserve flavor and nutritional content. Because sealing is non-contact, temperature-sensitive ingredients are not exposed to heat during the sealing step.

Snack Foods & Dry Products

Chips, nuts, dried fruit, seasonings, and powdered mixes depend on a moisture barrier to stay crisp and free-flowing. Induction foil seals provide that barrier without heat exposure that could affect sensitive flavor compounds.

Cosmetics & Personal Care

Preservative-free and natural formulations are especially vulnerable to contamination and oxidation. Induction seals protect the product through the supply chain, and the clean foil membrane the consumer sees on opening reinforces premium positioning.

Chemicals & Household Products

Powders, granules, and liquid formulations in this category need containment that holds through transport and storage. The forced-air design keeps siting simple, since no water connection is needed near the packaging station.

Why Choose Us

Factory-Direct Manufacturing. We build rather than resell, which means transparent pricing without distributor layers, genuine customization at the point of order, and spare parts sourced from the original production line.

Application Validation Before Purchase. Container-liner-cap combinations behave differently, and the correct operating window is specific to your product. We support pre-purchase validation with your own containers and liners, so the machine arrives configured for your application rather than a generic specification.

Global Service Commitment. Warranty coverage on parts and labor, remote technical support by video call and email, on-site installation and training for volume orders, and a maintained spare parts inventory for fast dispatch. Operators receive a full documentation and video training library.

Packaging Line Depth. Our engineering background spans filling, capping, labeling, and sealing, so this machine is designed to integrate with the equipment around it. Complete line layout and configuration support is available for industrial installations.

FAQ

Q1: What container materials and cap sizes does the machine support?
PET, HDPE, LDPE, PP, PS, PVC, and glass containers, with cap openings from 20 mm to 130 mm using standard sealing heads. Custom heads are available for other diameters. Metal containers and metal caps cannot be sealed with induction technology.

Q2: How do I determine the correct sealing settings for my product?
Each container-liner-cap combination has a specific operating window between minimum energy for a complete bond and maximum energy before the liner is compromised. We provide a step-by-step procedure for establishing it during setup, and settings can be saved and recalled for repeat production.

Q3: What maintenance does the machine require?
Routine maintenance is limited to inspecting the sealing head for debris, cleaning or replacing air filters periodically, and checking conveyor belt tension and alignment. There is no coolant to change and no pump to service.

Q4: Will the machine integrate with my existing production line?
Yes. Conveyor speed, height, and control interfaces can be configured to work with upstream fillers and cappers and downstream labeling or packing equipment. For complete line projects, layout and configuration support is available.

Q5: What is the lead time, and how is the machine shipped?
Lead time depends on configuration and order volume. Machines ship worldwide by sea freight for cost efficiency or air freight for urgency, professionally crated for international transport.

Q6: What support is provided after delivery?
Warranty coverage on parts and labor, remote technical support by video call and email, a documentation and video training library, and on-site installation and training for volume orders.
