ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling
  • ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling

ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling

Place of Origin Shanghai
Brand Name YIMU
Certification CE, TUV, SGS
Model Number CM100
Product Details
Name:
Auto Big Drum Oil Barrel 25L Syrup Sugar Inside Plug Outside Cap Sealing Machine
Keyword:
Capping Machine
Material:
SS316+304SUS
Warranty:
3 Years
Application:
Cosmetics, Medical, Food, Chemical
After Sales Service:
Spare Parts And Online Video Support
Driven Type:
Pneumatic
Power:
1 KW
High Light:

ODM Automatic Capping Machine

,

Syrup Barrel Automatic Capping Machine

,

Automatic rinsing filling capping machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiable
Packaging Details
wooden case, L1650*W760*H1680mm, 400KG
Delivery Time
13-16 working days
Payment Terms
T/T, L/C, D/P
Supply Ability
40 set/month
Product Description

Auto Big Drum Oil Barrel 25L Syrup Sugar Inside Plug Outside Cap Sealing Machine



Product Introduction

Automatic unscrambling and fetching lid single head capping machine is protective automatic capping machine and control by PLC program. Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.



Product Application

It suits for capping of 1-30kg drum and plastic large diameter caps.



For examples:

Pesticide bucket capping machine, Liquid chemical fertilizer bucket capping filling machine, Automobile urea bucket capping machine, Antifreeze bucket capping machine, Motor oil bucket capping machine, Lubricant barrel capping machine, medical alcohol barrel capping machine, etc.



Technical parameter:



Capping capacity
0-1000bottles/hour according to bottle and lid sizes
Applicable cap diameter
20-70mm customized according to caps
Suitable bottle diameter
customized according to bottle sample
Suitable for bottle height
customized according to bottle sample
Total Power
2.5kw
Power supply
AC380V/220V/110V, Single phase or three phased, globally customized
Air supply
0.5-0.7Mpa



Sample:

ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling 0

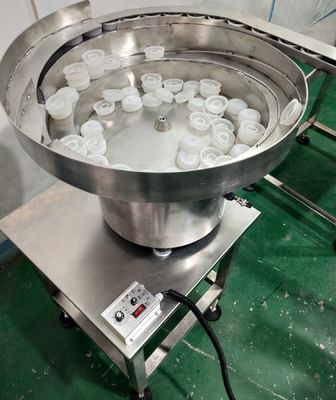

Cap vibrating disk: Cap chute:
ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling 1 ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling 2



Capping head Capping motor:
ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling 3 ODM Automatic Capping Machine For 25L Syrup Sugar Barrel Rinsing Filling 4
