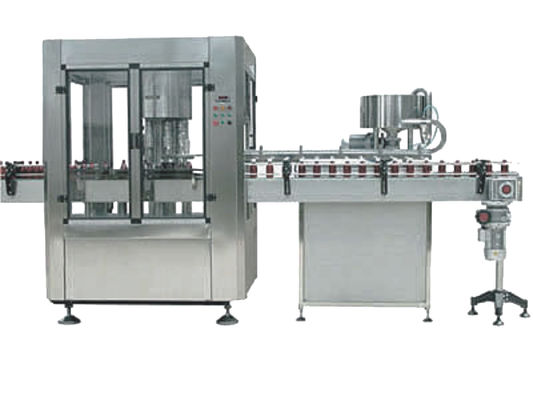

Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed

Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed

Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed
Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed
Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE
Model Number: CM600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden case, L2300*W1200*H1800mm, 900KG
Delivery Time: 20-25 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20sets/month
Contact Now
Detailed Product Description
Product Name: Automatic High Speed Rotary ROPP Aluminum Screw Cap Capping Sealing Machine Glass Plastic Bottle Automatic Grade: Automatic
Voltage: 220V/380V 50-60Hz Application: Beverage,Food,Medical
Driven Type: Electric After-sales Service Provided: Online Support,Free Spare Parts
Warranty: 1-2 Years Capping Speed: 6000-10000 Bottles/hour
High Light:

Rotary semi capping machine

,

Inline Rotary semi capping machine

,

Rotary water bottle sealing machine

High Speed Rotary ROPP Aluminum Screw Cap Automatic Capping Sealing Machine Glass Plastic Bottle



Standard features:
1. Machine designed to place and form metal caps on a wide range of containers – enclosures.
2. Price includes one set of change of parts (star wheel, outer guide and cap delivery).
3. ROPP capping head model VA90, manufactured in 304 stainless steel and hardened forming discs.
4. Bottle will pick up cap and the container will be indexed into position.
5. Fully adjustable from 7 inch to 14 inch high containers. (Special configurations available on request).
Main component features:
1. Maximum bottle diameter with 12 pocket star wheel: 4.25 inch
2. Maximum bottle diameter with 6 pocket star wheel: 8.00 inch
3. Center CAM manufactured in special cam rated plastic material.
4. Automatic start and stop with presence or absence of containers.
5. Jamming clutches with electric signal for shutdown on product jamming (This prevents major damage to parts and minimizes possible spills).
6. 2 Hp Ac motor with frequency drive speed control.
Number
Name
Brand
1
PLC
Japan Mitsubishi
2
Touch screen
China Kinco
3
Motor system
TECO
4
Solenoid valve
China AIRTAC
5
Pneumatic component
China AIRTAC
6
Low-voltage appliances
France Schneider

Technical Parameter:

1, capping head: 4,6,8

2, capping speed: 6000-10000 bottles/hour

3, suitable for bottle: 100-2000ml

4, suitable for cap: 18-70mm

5, power: 220V,380V, 50-60Hz, 3-5KW

Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed 0Inline Screw Rotary Semi Capping Machine Water Bottle Sealing Machine High Speed 1

Tag:

trigger pump capping machine,

water bottle capping machine,

monoblock filler capper machine
