PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
  • PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar
PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar

PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number CM100
Product Details
Product Name:
Automatic 1L -5L Bottle Press And Screw Capping Machine And Capper With Cap Elevator
Function:
Screw Capping Machine
Bottle Type:
1-5L Bottle (can Be Customized)
Cap:
Plastic Screw Cap
Material:
304stainless Steel
Capping Speed:
20-30 Bottles/min
After-sales Service Provided:
Online Video Technical Support
Driven Type:
Electric
Application:
Food, Chemical,Commodity,Medical
Warranty:
2 Years
Highlight:

5L water bottle filling and capping machine

,

1L water bottle filling and capping machine

,

PLC jar filling and capping machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiable
Packaging Details
wooden case, L2000*W800*H1700mm, 300KG
Delivery Time
12-15 working days
Payment Terms
T/T, L/C, D/A, Western Union
Supply Ability
20set/month
Product Description

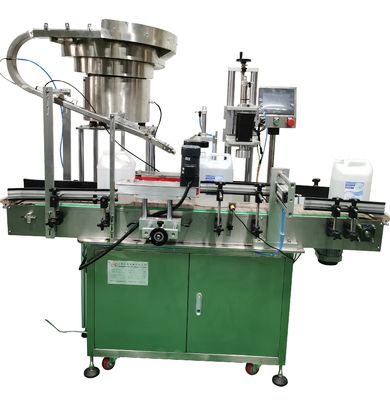

Automatic 1L -5L Bottle Press And Screw Capping Machine And Capper With Cap Elevator



Automatic plastic bottle screw or press capping machine is our new designed product recently.

Automatic capping machine adopts rotary plate to positioning the bottle and capping.

The type machine is widely used in packaging cosmetic,chemical,foods,pharmaceutical,pesticides industry and so on.

The bottle capping machine adopts frequency controlled drive,and transportation exit is adjustable,so it could meet different packaging machinery pipeline request.

It uses PLC programmable control.Structure compact,just used similar size of bottles and caps.

Technical Parameter:
Cap feeding device
Vibration disk/ cap elevator
Capping type
plastic screw cap
Bottle height
60-300mm
Cap diameter
18-120mm
Bottle diameter
50-120mm
Capping speed
20-30 bottles/min
Capping voltage
AC 220V 50/60Hz,1 phase, (customized)
Air pressure
0.3-0.6MPa
Dimension
2000(L)*1000(W)*2000(H)mm
Packing size
2100(L)*1100(W)*1700(H)mm
Machine weight
About 500KG



1) Suitable for screw cap and press cap


2) vibration plate and lifter are all for feeding cap



3) One size cap diameter need one vibration plate



Almost cap size can share one lifter

PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar 0

PLC Programmable Water Bottle Filling And Capping Machine For 1L -5L Jar 1
