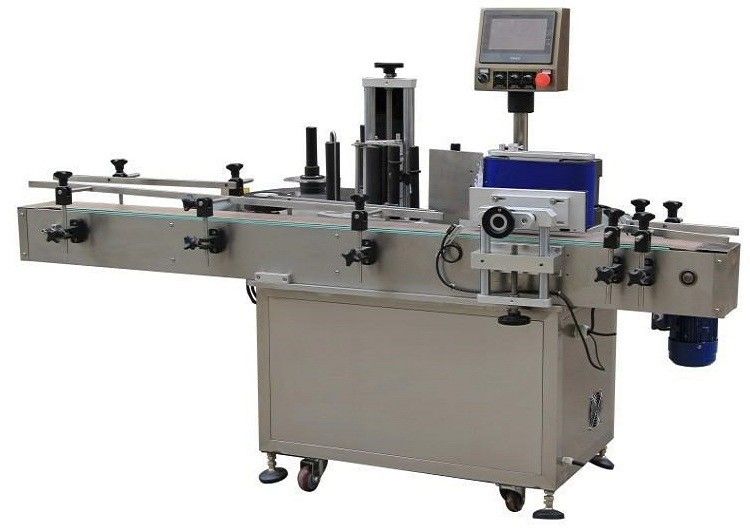

Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle

Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle

Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE
Model Number: YM510
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: wooden case, L2100*W750*H1720mm, 280KG
Delivery Time: 3-12day
Contact Now
Detailed Product Description
Voltage: 110V/220V, 50-60Hz,1ph Power: 700W
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation Labeling Accuracy: ±1mm
Bottle Type: Round Bottles,Round Square Flat Pet Bottle,Round Bottle /Jars/cans Labeling Machine Function: Sticker Round Bottle Labeling Machine,Adhesive Sticker Labeling Machine
High Light:

Ketchup Automatic Labeling Machine

,

Chili Automatic Labeling Machine

,

Ketchup automated label applicator

YM510 Automatic Ketchup Chili Sauce Labeling Machine Round Juice Bottle Adhesive Labeling Machine



    This automatic labeler is equipped with HMI control panel and PLC system, all speed be communicated into HMI, adjustment and save in HMI, which can help you using machine easily. This machine is widely used in food,beverages,cosmetics and daily chemical industries, for round jars/cans/bottles/any cylinder products.



Feature:

1. PLC combined with HMI/machine interface digital LCD touch screen controller.

2. Precision servo or stepper motor and drive on labeling head, for fast and steady feeding label.

3. Machine be made by high quality material and imported machine parts, Stainless steel 304 frame construction and components are standard.

4. Labeling speed is automatic synchronized with conveyor speed to ensure quality labeling.

5. Hot foil date printer and transparent sensor for choose.

6. Machine can be used alone, or connect with turntable and filling capping other machines.





Technical parameter:



No.
Item
Data
1
Reel label outer diameter
Max.360mm
2
Label length
10-299mm, if more big label, customized
3
Conveyor speed
1-30m/min
4
Capacity
0-150 bottles/min
5
Bottle diameter
Below 131mm, if more big bottle, customized
6
Labeling error
< ±0.8mm
7
Power supply
700W, 220V, 50/60Hz, 1 phase
8
Machine size
L2040 * W800 * H1660 mm
9
Machine weight
300KG
10
Reel label Inner diameter
80mm or 50mm
11
Label width(height)
10-175mm, if more big label, customized



Machine Layout:
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 0
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 1
Touch screen
Siemens/WEINVIEW touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can save multiple groups of parameter, with production counting function,power saving function. Production number setting prompt function, parameter setting, convenient production management, different product labeling switch one key to achieve,no need repeated debugging, simple and fast; And has the perfect fault prompt and the help function.
Ribbon Printer
It can be equipped with ribbon printing machine, which can print production date and batch number on line, reduce the packaging
process of bottle and improve production efficiency.
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 2
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 3
PLC control system
Adopt Japanese Mitsubishi PLC control, more stably performance, Keep the machine safe and running steadily.

Wrap around labeling device

Automatically detect the bottle, and stick label on bottle face, suitable for more different size bottle and label.
Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 4




Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 5



Bottle Dispersing

The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function ,can be used in a single machine , and also can be connected with the production line


High quality labelling head

1. It can be adjusted automatic according to the label height.
2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.
3. Normal is 180mm height labeling head, we also have more biger and smaller labeling head


Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 6






Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 7Ketchup Chili Sauce Adhesive Automatic Labeling Machine Applicator Round Juice Bottle 8
