ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
  • ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min
ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min

ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM510
Product Details
Labeling Speed:
30-100bottles/min
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Field Installation
Customized:
Any Different Size Bottle
Printer:
Date Coder (optional)
Labeling Error:
＜1mm
Label:
Self Adhesive Label
High Light:

ODM Wrap Around Automatic Labeling Machine

,

Automatic Labeling Machine 100bottles/Min

,

ODM semi automatic label applicator machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L2150*W1050*H1550mm, 400KG
Delivery Time
1-15days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
25sets per month
Product Description

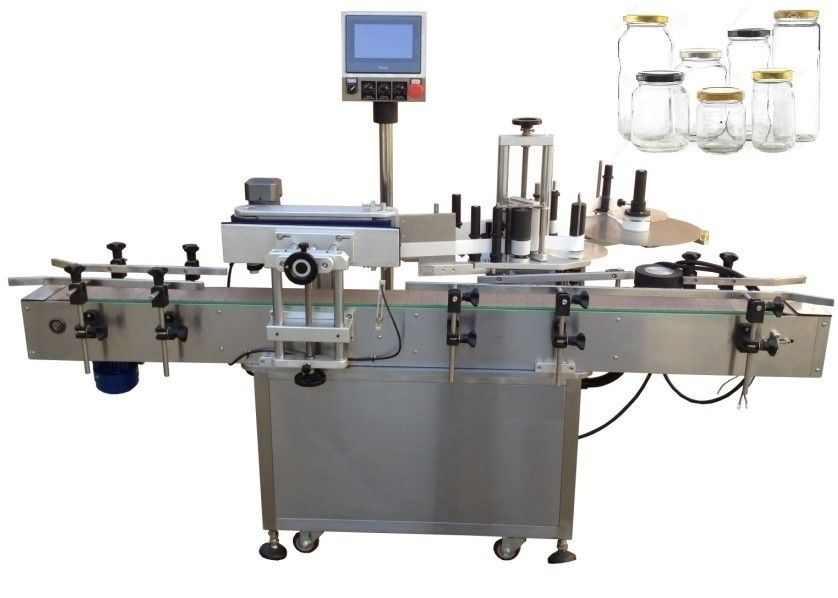

YM510 Automatic Round Glass Labeler Plastic Bottle Wrap Around Labeling Machine





Feature:

1. This machine be widely used in food,drinks,cosmetics and daily chemical industries.

2. Machine PLC connect with HMI control machine interface digital LCD touch screen.

3. Solve the problems of low production efficiency information error and unattractive products.

4. Precision servo motor driven on labeling head for feeding labels, fast speed labeling.

5. Label feeding speed is synchronized with conveyor speed automatically to ensure quality labeling.

6. Machine can bu used alone, or connect with bottle feeding turntable and packing table, or connect with filling capping machine.

7. Stainless steel 304 frame structure and parts standard rust-free precision servo motor drive.



Technical Parameter:



No.
Item
Data
1
Labeling speed
30-100 bottles/min
2
Labeling error
＜ ±0.8mm
3
Bottle diameter
Below 120mm, if more big bottle, customized
4
Label height
10-177mm, if more big label, customized
5
Label length
10-300mm, if more big label, customized
6
Bottle separating device
Screw or rubber roller
7
Power supply
700W, 220V, 50/60Hz, 1 phase
8
Machine size
L2000 * W1000 * H1700 mm
9
Machine weight
400KG
10
Reel label Inner diameter
76mm or 40mm
11
Reel label outer diameter
Max.360mm



ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 0ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 1



Layout:

ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 2

 ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 3

ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 4ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 5ODM Wrap Around Semi Automatic Labeling Machine Applicator 30-100bottles/Min 6
