Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W

Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W

Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W
Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W
Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W
Product Details:
Place of Origin: Shanghai China
Brand Name: YIMU
Certification: CE
Model Number: YM320
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: wooden case, L1100*W900*H1550mm, 200KG
Delivery Time: 5-10days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Name: Automatic Online Top Side Flat Labeling Machine Warranty: 4 Years
Labeling Error: < 1mm After-sales Service Provided: Online Support,Video Technical Support
Voltage: 220-415V/50-60HZ,1phase Automatic Grade: Automatic
High Light:

PLC flat label applicator

,

380W flat label applicator

,

380W flat label applicator machine

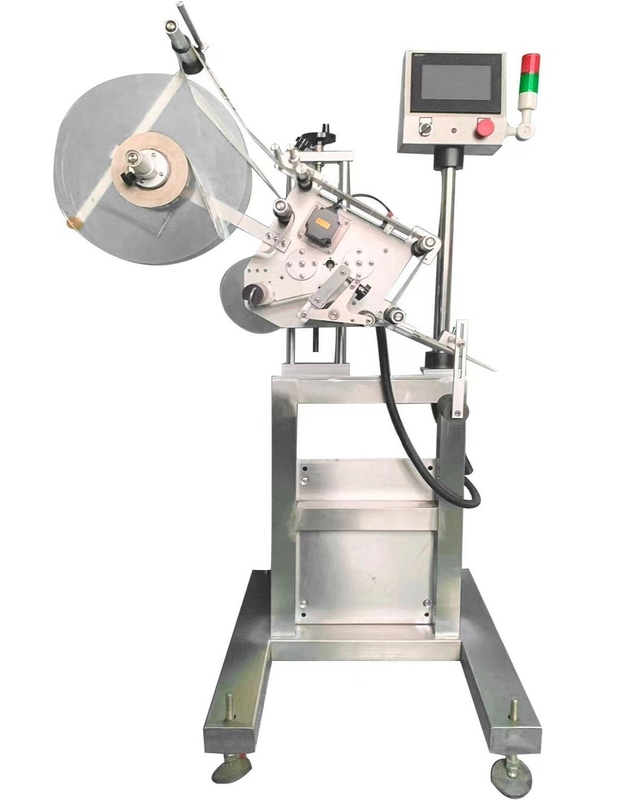

YM320 Automatic online top side flat labeling machine PLC control



* Suit for different kinds big objects labeling on top surface;


* Machine be used with production line or conveyor, it is very smart, only put along conveyor, working.

* Machine can customized;



Characteristic:

  • Adopt mature technology PLC control system, operation is stable and high-speed.

  • Using touch-screen control operating system, simple, practical, efficient;

  • Screw adjustment for labeling head moving easy;

  • Advanced technology of pneumatic coding system, print the batch number and expiry date clearly.

  • Transmission-type roll label device, make sure the label attached more firmly;


Technical parameter:

Model YM320
Capacity (PCS/min) 0-120 (depond on label size)
Conveyor not have conveyor, put on line,it can be work, very smart
Labeling error < ±1 mm
The inner diameter of label roll 75 mm
The outer diameter of label roll 350 mm(max)
Suitable for label size W:10-300mm, L:20-350mm
Suitable size of labeling objects any size big bottle, drum, carton, box, pallet
Power supply(In China) AC220-240V 50/60HZ 1ph (customized)
Power 380 W
Weight 160 KG
Machine size 1000(L) 800 (W) 1680 (H) mm































































Device Advantages:

  • Imported electric elements, stable performance, low failure rate;

  • Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;

  • No object coming, not labeling, automatic alarm when leakage and without label.

  • The whole machine use material S304 stainless steel and anodized senior aluminum alloy material ,with high corrosion resistance and never rust;

Machine Drawing:
Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W 0Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W 1Customized Touchscreen Online Flat Label Applicator Machine PLC Control 380W 2








Main Configuration:

N0. Name Brand
1 PLC Mitsubishi (Japan) / Siemens(Germany)
2 HMI WEINVIEW (Taiwan) / Siemens(Germany)
3 Servo motor KINCO (Germany) / Raynen (China)
4 Detection bottle sensor KEYENCE (Japan) / BOJKE (China)
5 Detection label sensor FOTEK(Taiwan) / SICK (Germany)
6 Stainless steel material 304SS
7 Aluminium alloy Surface anode gush arenaceous technology
