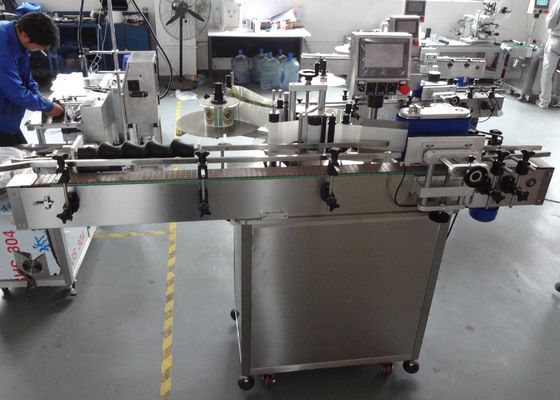

YM510 Automatic Round Bottle Labeling Machine Glass Plastic Can Jar Juice Labeler

Range of application:

Feature:

1. This automatic labeler is equipped with HMI control panel and PLC,which can help you using machine easily.

2. Precision servo motor drive on labeling head for feeding labels, more steady.

3. Stainless steel 304 and aluminum profile frame construction and components are standard, it is made of high quality material and imported machine parts.

4. Labeling speed is automatic synchronized with conveyor speed to ensure quality labeling;

5. The function of date code printing with labeling for optional.

6. Machine can be used alone, or connect with turntable and filling capping other machines.

Technical Parameter:

• Label width (height) :    10-179mm, if more big label, customized

• Label length:  10-299mm, if more big label, customized

• Bottle diameter:  Below 121mm, if more big bottle, customized

• Machine capacity: 30-100 Bottles/min

• Labeling error: ＜ ±0.8mm

• Conveyor speed:  0-28m/min

• Power supply: 220V, 50/60Hz, 1 phase ( aother voltage can be customized)

• Power: 700W

• Reel label Inner diameter: 76mm

• Reel label outer diameter: Max.360mm

• Machine size:  L2040 * W800 * H1760 mm

• Machine weight: 300KG

Touch screen

Siemens/WEINVIEW touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can save multiple groups of parameter, with production counting function,power saving function. Production number setting prompt function, parameter setting, convenient production management, different product labeling switch one key to achieve,no need repeated debugging, simple and fast; And has the perfect fault prompt and the help function.

PLC and electric appliance cabinet

Adopt Japanese Mitsubishi PLC control, more stably performance, Keep the machine safe and running steadily.



Wrap around labeling device

Automatically detect the bottle, and stick label on bottle face, suitable for more different size bottle and label.



High quality labelling head
