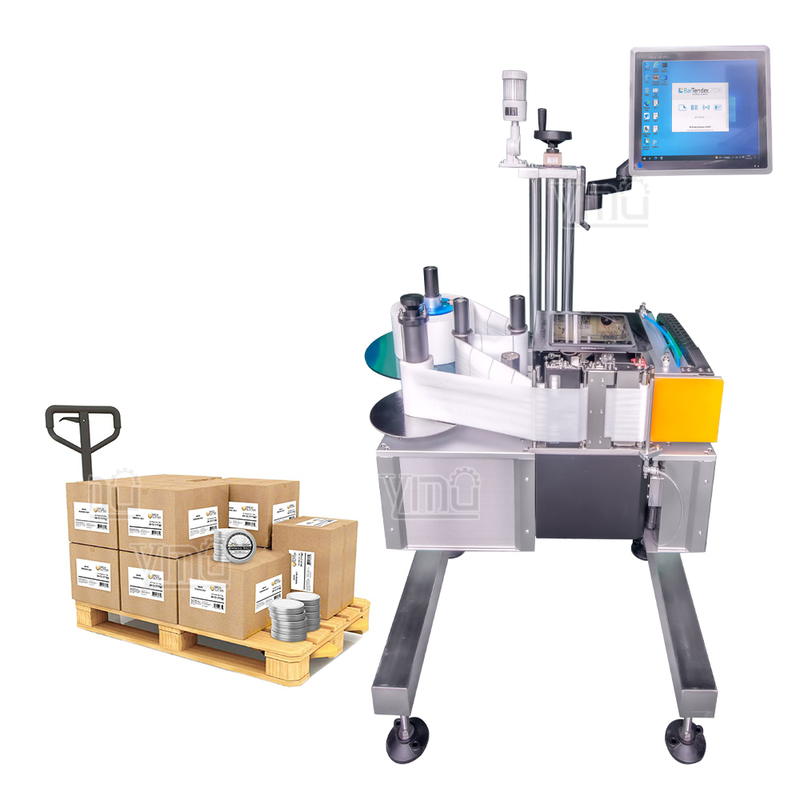

YIMUPACK YM320P Automatic Online Coding & Labeling Machine
  • YIMUPACK YM320P Automatic Online Coding & Labeling Machine
YIMUPACK YM320P Automatic Online Coding & Labeling Machine

YIMUPACK YM320P Automatic Online Coding & Labeling Machine

Product Details
Highlight:

automatic labeling machine with warranty

,

online coding labeling machine

,

YM320P automatic labeling machine

Product Description
Product Information of YIMUPACK YM320P Automatic Online Coding & Labeling Machine
1. Basic Product Information
Item Details
Product Name YIMUPACK YM320P Automatic Online Coding & Labeling Machine
Brand YIMUPACK
Model YM320P
Place of Origin Shanghai, China
Certification CE
Warranty Period 2 years (whole machine); 5 years (core components)
After-Sales Service Video technical support, malfunction diagnosis, free spare parts (within warranty)
Packaging Material Export-standard wooden case
Automatic Grade Fully automatic
Driven Type Electric
Key Selling Points High accuracy, stable integration, intelligent control
2. Core Technical Parameters
2.1 Labeling & Coding Parameters
Parameter Specifications
Labeling Speed 20–50 PCS/min (varies by product/label size and printing requirements)
Labeling Accuracy ±1 mm (excluding product and label inherent errors)
Applicable Label Sizes Width: 5–180 mm; Length: 5–350 mm (adjustable for different scenarios)
Label Roll Specifications Inner diameter: 40 mm / 76 mm; Max outer diameter: 350 mm
Power Supply AC 110V/220V/380V 50/60Hz (customizable per regional standards)
Power Consumption 450–600W
Machine Dimensions (L×W×H) 1000×900×1700 mm / 1100×950×1730 mm (customizable)
Machine Weight 230–400 kg (varies by configuration, subject to actual product)
2.2 Printing Performance
Printing Index Details
Printing Engine USA Zebra ZE500 industrial-grade printer (high stability for 24/7 operation)
Printing Resolution 300 DPI (12 dots/mm)
Print Width 53 mm / 107 mm (two models optional)
Max Print Speed 520–800 mm/s (varies by print width)
Supported Codes 1D codes (Code 39, UPC-A, etc.), 2D codes (QR Code, Data Matrix, etc.)
Ribbon Specifications Length: 600–1000 m; Width: 20–110 mm (matched with print width)
3. Main Configuration & Core Components
Component Category Brand/Model
Control System Japanese Mitsubishi PLC + WEINVIEW/SIEMENS HMI (English interface, customizable)
Printing Engine Zebra ZE500 (USA industrial-grade, high durability)
Sensors KEYENCE/OMRON photoelectric sensors (for product/label positioning)
Machine Frame Material 304 stainless steel (corrosion-resistant, easy to clean)
Electrical Components Schneider frequency converter, Delta motor (stable and energy-saving)
4. Product Functions & Features
  1. Integrated Coding & LabelingCombines real-time coding and automatic labeling in one process, supporting dynamic information printing (production date, batch number, QR codes) and immediate adhesion, eliminating secondary operations . The Zebra printing engine ensures clear, smudge-resistant codes even in high-speed workflows .
  2. Intelligent Control & OperationEquipped with a touchscreen HMI that supports storing 20+ sets of parameters for quick product switching. It features automatic fault diagnosis (e.g., label breakage, ribbon exhaustion) with visual alarms and emergency stop functions .
  3. Strong System CompatibilityThe built-in industrial PC supports custom software development and can connect to ERP, MES, or weighing/scan systems via USB/Ethernet. It realizes data binding (e.g., linking batch info to QR codes) for full-process traceability .
  4. Flexible Application AdaptabilitySuitable for top/side labeling on flat-surface products (cartons, plastic boxes, pouches, egg trays) across multiple industries. No complex adjustments are needed when switching between product specifications .
  5. Stable & Durable StructureCNC-machined components and international brand electrical parts ensure 7×24 hours continuous operation. The 304 stainless steel frame meets GMP and food safety standards, easy to disassemble and clean .
5. Application Scenarios
5.1 Applicable Industries
  • Food & Beverage: Cartons of snacks, beverage cases, frozen food packages (printing expiration dates and batch codes).
  • Pharmaceuticals: Medicine boxes, medical device packaging (coding regulatory information for traceability).
  • Daily Chemicals: Cosmetic cartons, cleaning product containers (labeling brand info and QR codes for marketing).
  • Logistics & Packaging: Shipping cartons, plastic turnover boxes (printing waybills and tracking codes).
5.2 Applicable Products

Flat-surface items such as corrugated cartons, plastic boxes, paper pouches, egg trays, folders, and empty/full product containers.

6. Supply & Customization Services
6.1 Lead Time & Packaging
Order Quantity Lead Time Packaging Specifications
1–3 sets 15–20 days Single package size: 220×70×150 cm; Gross weight: 400 kg
4+ sets Negotiable
6.2 Customization Options (MOQ: 1 Set)
  • Hardware Adjustment: Custom machine dimensions and label roll compatibility.
  • Software Integration: Develop interfaces for ERP/MES systems or add data encryption functions.
  • Printing Upgrade: Optional 600 DPI high-resolution printing head for fine text/graphics .
  • Language Customization: HMI interface supports multi-language settings (e.g., Spanish, German).
7. Supplier Information
Item Details
Supplier Name Shanghai Yimu Machinery Co., Ltd.
Production Experience 15+ years in packaging machinery manufacturing; provides OEM services for international brands
Core Capabilities R&D of integrated coding-labeling systems, whole-line layout design, overseas technical support
Global Reach Products exported to 60+ countries; overseas showrooms in UK, USA, UAE, etc.
Value-added Services Free pre-sales testing, on-site installation guidance, 7×24 online technical support
