Flat Surface Labeling Machine
>
|
|
| Place of Origin | Shanghai, China |
| Brand Name | YIMU |
| Certification | CE |
| Model Number | YM210 |

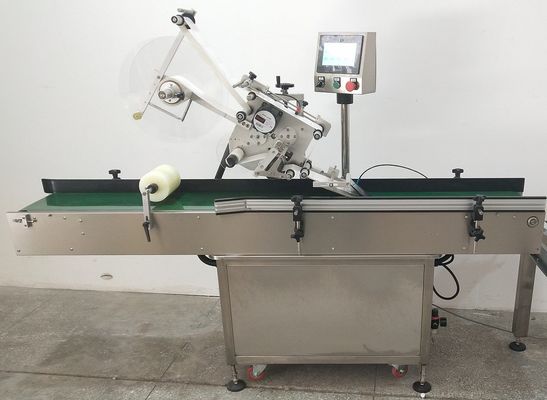

YM210 High Speed Automatic Gift Perfume Box Corner Book Flat Surface Top Side Labeling Machine
Application:
This labeling machine is suitable for different kind plane products in the daily chemicals, food & beverages,pharmaceuticals industries, such as small box, carton, bottle lid, pouch and so on. It has optional date coding device, realize date coding on stickers.
Function:
1. Machine stuiable for any top side flat product labeling. More flexible arrangement for manufacturing schedule.
2, PLC and touch screen control panel with easy operation, many units parameter setting and save.
3. Automatic stop when label breaks down or runs out, malfunction self-testing and display with alarm.
4. Machine has belt conveyor, can use alone or connect with filling packing line use, label pressing brush and sponge roller on conveyor.
5. All components are precisely processed by CNC to ensure high quality.
6. All electrical configurations are big international brand, such as Simens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.
7. Very high labeling accuracy and fast labeling speed, long-time using.
Technical Parameter:
| Model | YM210 |
| Capacity (PCS/min) | 0-100(depond on bottle and label size) |
| Conveyor running side | from left to right / from right to left |
| Conveyor speed(meter/min) | ≤40 |
| Labeling error | ＜ ±0.3 mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 360 mm(max) |
| Suitable for label size | W:5-200mm, L:10-400mm |
| Suitable size of labeling objects | any size |
| Power supply(In China) | AC220V 50/60HZ single phase (customized) |
| Power | 400 W |
| Weight | 200 KG |
| Machine size | 1800(L) 800 (W) 1650 (H) mm |
Machine drawing:
