Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
  • Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine

Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine

Place of Origin Shanghai, China
Brand Name YIMU
Certification CE
Product Details
Type:
LABELING MACHINE
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Showroom Location:
Canada, United States, Viet Nam, UAE, Australia
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380V
Dimension(L*W*H):
1000(L)*600(W)*1700(H) Mm
Weight:
150 KG
Warranty:
2 Years, 2 Year Guarantte
Key Selling Points:
High-accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
5 Years
Core Components:
PLC, Motor
After-sales Service Provided:
Online Technical Support And Spare Part
Labeling Speed:
20-200 PCS/min
Suitable For Label Width:
5-180mm
Suitable For Label Length:
5-400mm
Labeling Accuracy:
1mm
PLC:
Japan's Mitsubishi
Product Name:
Auto Sticker Labeling Machine
Usage:
Pallet Cargo Labeler
Port:
Shanghai
High Light:

Paper Box Corner Front Back Labeler

,

Automatic Heavy Cargo Labeling Machine 380V

,

200PCS/min Heavy Cargo Labeling Machine

Payment & Shipping Terms
Price
$3,100.00/sets 1-2 sets
Packaging Details
WOODEN WITH STRONG SEAWORTHY PACKING SUITABLE FOR EXPORT.
Supply Ability
20 Set/Sets per Month
Product Description
APPLICATION

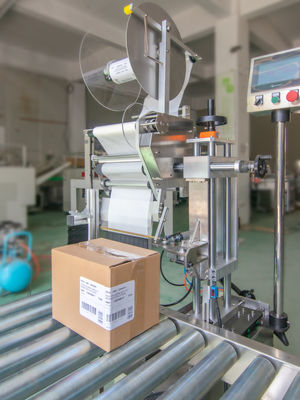

Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 0
PRODUCTS DESCRIPTION
1. For automatic labeling on side flat drum, carton, box, pallet and any big heavy product for the pharmaceuticals, daily chemicals, food& beverages industries. 2. The labeller will automatically detects label size and set the appropriate labeling parameters, a very useful feature for users with multiple products to label. 3. It is an optimal combination of speed,accuracy,stability,GMP standards, easy use, and flexibility. 4. Machine strong labeling for corner of two sides, any different size carton and labels are no problem on this machine. 5. PLC combined with human/machine interface digital LCD touch screen controller. 6. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling. 7. The kind machine can working without conveyor, it only put along of existing conveyor, it's very convenient and smart.

PRODUCT PARAMENTERS
1
Label width(height)
5-180mm
2
Label length
5-200mm
3
Capacity
20-200pcs/min(can be customized)
4
Conveyor speed
0-30m/min
5
Labeling accuracy
±1mm
6
Power supply
400W , 220V,50Hz/60Hz (customized)
7
Label reel Inner diameter
76mm or 40mm
8
Label reel outer diameter
Max 380mm
9
Machine size
L1000 * W600 * H1700 mm
10
Machine net weight
150KG
11
Online printer
Optional
12
Control system
Japanese Mitsubishi PLC

MAIN CONFIGURATION LIST
PLC
SIEMENS / MITSUBISHI
HMI
SIEMENS / WEINVIEW
Motor
RAYNEN servo motor  / KINCO stepper motor
Sensor
SICK / KEYENCE / PANASONIC
Touches screen
WEINVIEW (Taiwan)
Frequency changer
Schneider(Germany)
Stainless steel material
304SS
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 1
DETAILS IMAGES
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 2
CUSTOMER
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 3

COMPANY PROFILE
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 4
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 5
Full Automatic Double-Sided Paper Box Corner Sticker Heavy Cargo Labeling Machine 6
