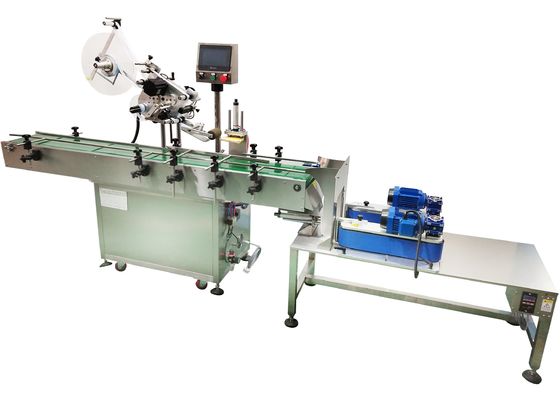

ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle
  • ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle
  • ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle
  • ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle
  • ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle
  • ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle

ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle

Place of Origin Shanghai, China
Brand Name YIMU
Certification CE
Model Number YM210
Product Details
Name:
Automatic Pouch Box Adhesive Sticker Top Side Labeling Machine For Cap Labeler
Keyword:
Top Side Labeling Machine
Labeling SpAutomaticeed:
30-200 Pcs/min
Application:
Chemical,Beverage,Food,Commodity,Medical
Warranty:
3 Years
Label Size:
W:20-270mm, H:20-500mm
High Light:

ODM Top And Bottom Labeler

,

280KG Top And Bottom Labeler

,

280KG automatic square bottle labeling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L1950*W760*H1680mm, 320KG
Delivery Time
3-7 working days
Payment Terms
T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability
25set/month
Product Description

YM210 Automatic Pouch Box Adhesive Sticker Top Side Labeling Machine For Cap Labeler



Ⅰ. Application:

This model Labeling machine suit for different kinds plane products in the daily chemicals, food & beverages,pharmaceuticals industries, such as small box, carton, cap, pouch and so on. It has optional date coding device, realize date coding on stickers.



. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.

2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.

. Technology Data:
Model
YM210
Labeling Precision
±1mm (excluding product and label error)
Power Supply
AC220V 50/60Hz 730W
Conveyor Speed
6~25 meters/min
Labeling Speed
0~150 pcs/min (Related to product and label size)
Sticker Out-Come Speed
Stepping Motor: 5~19 m/min

Servo Motor: 5~25 m/min
Application Product Size
Length: 40mm~500mm;

Width: 20mm~300mm;

Height: 20mm~500mm;
Applicable label size
Label Length: 20mm~500mm;

Label Width(body paper width): 20mm~180mm; 210mm (option)
Inner dia. of paper roll
Φ76mm
External dia. of paper roll
Max. Φ360mm
Size (LXWXH)
1900mm×760mm×1750mm ( can be customized size)
Weight
280KG



. Features You Can Not Ignor:
1. It can label for any products with flat top surface. More flexible arrangement for manufacturing schedule.
2. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.

3. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.

4. Label pressing brush and sponge roller.




Machine drawing:
ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle 0

ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle 1
ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle 2
ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle 3
ODM Adhesive Sticker Top And Bottom Labeler Machine 280KG for Square Bottle 4
