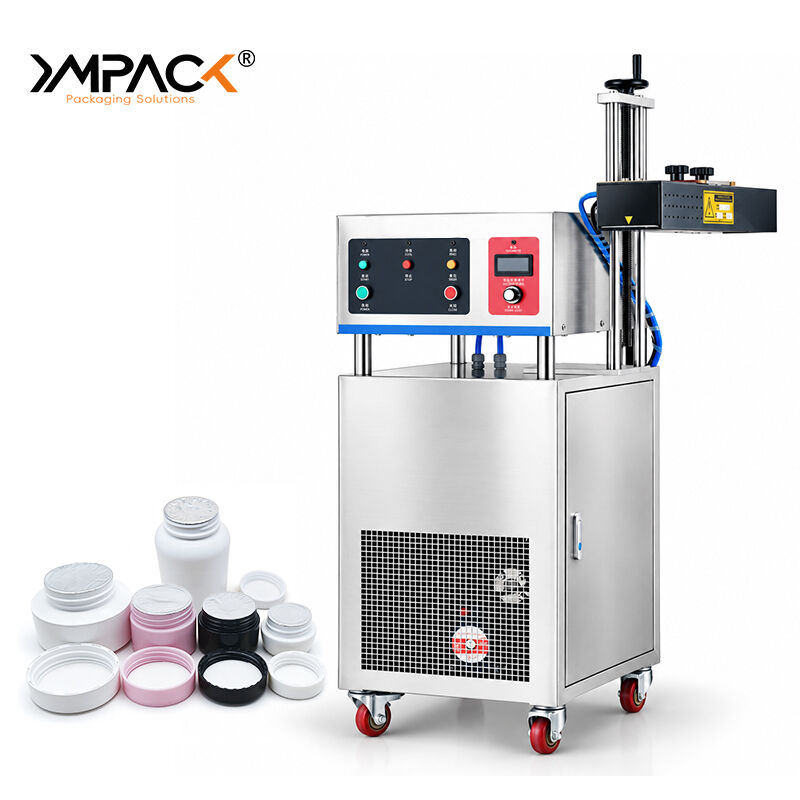

High-Efficiency LM3000 Aluminum Foil Induction Sealing Machine — Industrial-Grade Cap Sealer for High-Volume Production
High-efficiency LM3000 aluminum foil induction sealing machine for high-volume production. Industrial-grade non-contact sealing for plastic and glass containers in pharma, food, cosmetics, and chemical packaging. Factory-direct, CE certified, OEM/ODM available.
The High-Efficiency LM3000 Aluminum Foil Induction Sealing Machine is an industrial-grade cap sealer engineered around one governing objective: sustained sealing efficiency at production scale. Efficiency, in this context, is not a single specification — it is the combined result of sealing speed, output stability, container compatibility range, and how little attention the machine demands once it is running.
Induction sealing equipment is frequently evaluated on headline speed alone. That is a mistake. A machine that reaches a high peak rate but drifts under sustained load, or that requires frequent readjustment between SKUs, or that cools inadequately and forces recovery pauses, is not efficient in any operational sense. What matters on a production floor is containers sealed per shift at acceptable quality, and that number is determined by stability and changeover speed as much as by maximum throughput.
The LM3000 is specified for that operational definition of efficiency. Its dual-circuit water cooling architecture maintains stable sealing head temperature during extended full-load operation, so output does not degrade across a long production run. Its regulated power delivery holds consistent energy output across the voltage fluctuation that characterizes industrial electrical supply. Its broad sealing diameter range — φ20 mm to φ180 mm — allows a single machine to serve multiple container formats rather than requiring a dedicated sealer per SKU. And its control interface supports establishing and recalling verified operating settings, so changeover becomes a matter of minutes rather than a re-engineering exercise.
It is designed for manufacturers and contract packers in the nutraceutical, food, beverage, cosmetic, personal care, agrochemical, and chemical categories — operations where sealing is a continuous production requirement rather than an occasional task. It seals PE, PP, PET, PS, ABS, and glass containers with cap openings from φ20 mm to φ180 mm and container heights from 20 mm to 400 mm. As a factory-direct product, voltage, sealing head diameter, conveyor dimensions, and control interface are configurable at the point of order.
Core Specifications
| Parameter |
Specification |
| Model |
LM3000 Induction Sealing Machine
|
| Sealing Method |
Electromagnetic induction (non-contact) |
| Automation Level |
Automatic, continuous industrial operation |
| Cooling System |
Dual-circuit self-circulating water cooling |
| Input Voltage |
AC 220V ±10%, 50–60Hz, single phase (custom voltages available) |
| Maximum Sealing Speed |
Up to 250 bottles/min |
| Sealing Diameter |
φ20–φ180 mm (adjustable; custom heads available) |
| Sealing Height |
20–400 mm |
| Container Materials |
PE, PP, PET, PS, ABS, Glass (not for metal containers or metal caps) |
| Liner Compatibility |
Aluminum foil induction liners (one-piece & two-piece) |
| Main Unit Weight |
90 kg net / 120 kg gross |
| Certification |
CE SGS |
| Warranty |
2 years |
How It Works: Where Efficiency Actually Comes From
The sealing mechanism itself is well established: a high-frequency alternating current passes through an induction coil and generates an oscillating magnetic field. When a capped container enters that field, eddy currents are induced in the aluminum foil liner inside the cap, the foil heats within milliseconds, and the polymer layer beneath it melts and bonds to the container rim. Nothing heated touches the product. The seal is formed by the liner itself, and it solidifies within seconds of leaving the coil.
What determines whether that process is efficient at production scale is how the machine behaves across three dimensions: thermal stability, energy stability, and changeover speed.
Thermal Stability: Why Water Cooling Matters for Efficiency
High-frequency induction modules generate substantial heat, and the induction head itself absorbs heat from continuous cycling. In an air-cooled machine, that heat accumulates and is removed gradually by airflow. Over a long production run, the operating temperature of the coil and power devices rises, and as it rises, output characteristics drift. The practical consequence is that seal quality established at the start of a shift may not hold at hour eight — which shows up as rising reject rates that only become visible in quality data.
The LM3000 removes heat continuously through a dual-circuit self-circulating water cooling system that cools the induction head and power module on separate loops. Water's high thermal capacity allows the machine to hold a stable operating temperature indefinitely, so the sealing conditions established at setup remain valid for the duration of the run. This is the first source of efficiency: no recovery pauses, no output decay, no drift-driven rejects.
Energy Stability: Why Regulated Output Matters
Industrial facilities share electrical supply across compressors, welders, motors, and HVAC systems. Voltage at the packaging line fluctuates. A sealer with fixed power settings delivers varying energy as a result, and varying energy produces varying seals. The LM3000 regulates its output to maintain consistent energy delivery across supply fluctuation. This is the second source of efficiency: consistent seals regardless of what else is running on the plant supply.
Product Advantages
1. Efficiency Defined Operationally, Not Just by Peak Speed
The LM3000's efficiency comes from the combination of thermal stability, regulated power delivery, and broad format coverage. Containers sealed per shift — at consistent quality — is the metric that matters, and every engineering decision in this machine serves it.
2. Water-Cooled Architecture for Continuous Full-Load Operation
The dual-circuit self-circulating water cooling system keeps the induction head and power module within their operating range indefinitely. Output does not decay across long production runs, which means seal quality established at setup remains valid from the first container to the last.
3. High-Speed Sealing: Up to 250 Bottles Per Minute
At up to 250 bottles per minute, the LM3000 matches the output of high-speed filling and capping equipment. Sealing does not become the constraint on total line capacity.
4. Broad Container and Cap Compatibility
The machine seals PE, PP, PET, PS, ABS, and glass containers, with sealing diameters from φ20 mm to φ180 mm and container heights from 20 mm to 400 mm. That range spans pharmaceutical bottles, beverage and sauce containers, cosmetic jars, and wide-mouth industrial packaging — allowing one machine to serve multiple production lines.
5. Non-Contact Sealing Preserves Product Integrity
Nothing heated touches the container, the cap exterior, or the contents. For temperature-sensitive products — pharmaceuticals, biological preparations, dairy, juices, active-ingredient cosmetics — this removes heat exposure as a quality risk and eliminates the contamination pathway created by tooling that contacts every container in sequence.
6. Barrier Protection That Extends Shelf Life
The foil membrane blocks oxygen and moisture ingress. For food products this means retained texture, aroma, and flavor without added preservatives. For pharmaceuticals and nutraceuticals it means formulation stability through distribution. For hygroscopic powders it means the product performs as specified months after filling.
7. Built for Demanding Industrial Environments
Electrical components are sourced from established international suppliers, and the main circuit uses high-power CMOS modules and solid-state integrated circuit technology. The specification is intended for the high-humidity and dust-laden conditions common in agrochemical and chemical packaging facilities, supported by comprehensive protection logic.
Problems Solved & Application Scenarios
Agrochemical & Chemical Packaging
Packaging environments for these categories frequently involve high humidity, dust, and corrosive atmospheres. The LM3000 is specified for these conditions, with comprehensive circuit protection and a sealed electrical architecture that allows reliable operation where standard machines struggle.
Food, Sauce & Condiment Lines
Leakage in transit is among the costliest failure modes in liquid food packaging — one failed seal can damage an entire case. Induction sealing produces a full-perimeter bond that survives distribution and retail display, and the machine's stability across long runs keeps reject rates low during high-volume production.
Beverage & Liquid Food Production
Juices, teas, functional drinks, and liquid supplements depend on barrier protection to preserve flavor and nutritional content. Because sealing is non-contact, temperature-sensitive ingredients are not exposed to heat during the sealing step.
Cosmetics & Personal Care
Preservative-free and natural formulations are especially vulnerable to contamination and oxidation. Induction seals protect the product through the supply chain, and the clean foil membrane the consumer sees on opening reinforces premium positioning.
Contract Packagers Running Multiple SKUs
For co-packers, changeover time determines margin. The wide sealing diameter range, adjustable guide rails, and recallable settings let operators move between container formats and products in minutes — allowing one machine to cover a diverse order book.
Why Choose Us
Factory-Direct Manufacturing. We build rather than resell, which means transparent pricing without distributor layers, genuine customization at the point of order, and spare parts sourced from the original production line.
Documented Quality Control. Every unit is inspected at component level before assembly, run at full power during burn-in testing, and verified for sealing performance using sample containers before packing. Machines ship with test documentation, wiring diagrams, and operation manuals.
Application Validation Before Purchase. Container-liner-cap combinations behave differently, and the correct operating window is specific to your product. We support pre-purchase validation with your own containers and liners, so the machine arrives configured for your application rather than a generic specification.
Global Service Commitment. A 3-year warranty covering parts and labor, remote technical support by video call and email, on-site installation and training for volume orders, and a maintained spare parts inventory for fast dispatch.
Packaging Line Depth. Our engineering background spans filling, capping, labeling, and sealing, so the LM3000 is designed to integrate with the equipment around it. Complete line layout and configuration support is available.
FAQ
Q1: What does "high-efficiency" mean for this machine specifically?
Efficiency here refers to containers sealed per shift at consistent quality — the result of thermal stability during long runs, regulated power delivery across voltage fluctuation, and broad format coverage that reduces changeover time. Peak speed alone does not determine production efficiency.
Q2: How is the LM3000 different from air-cooled induction sealers?
The LM3000 uses a dual-circuit self-circulating water cooling system, while air-cooled models rely on forced airflow. Water cooling provides stable heat management during extended full-load operation, which means output does not drift over a long production run. Air-cooled models are simpler to install and require no coolant.
Q3: What container materials and cap sizes does the machine support?
PE, PP, PET, PS, ABS, and glass containers, with sealing diameters from φ20 mm to φ180 mm and container heights from 20 mm to 400 mm. Custom sealing heads are available. Metal containers and metal caps cannot be sealed with induction technology.
Q4: Is the 250 bottles-per-minute speed achievable in practice?
Maximum speed depends on cap diameter, container material, liner specification, and conveyor settings. Small-diameter containers can approach this rate; larger containers require more energy per seal and run at lower speeds.
Q5: What maintenance does the machine require?
Routine maintenance is limited to checking coolant level and topping up as needed, inspecting the sealing head for debris, cleaning or replacing air filters, and checking conveyor belt tension and alignment. There is no pump to service on a scheduled basis beyond the circulation pump.
Q6: What is the lead time, and how is the machine shipped?
Standard configuration lead time is approximately 10–15 days. Machines ship worldwide by sea freight for cost efficiency or air freight for urgency, professionally crated for international transport.
Q7: What support is provided after delivery?
A 3-year warranty covering parts and labor, remote technical support by video call and email, a documentation and video training library, and on-site installation and training for volume orders.
