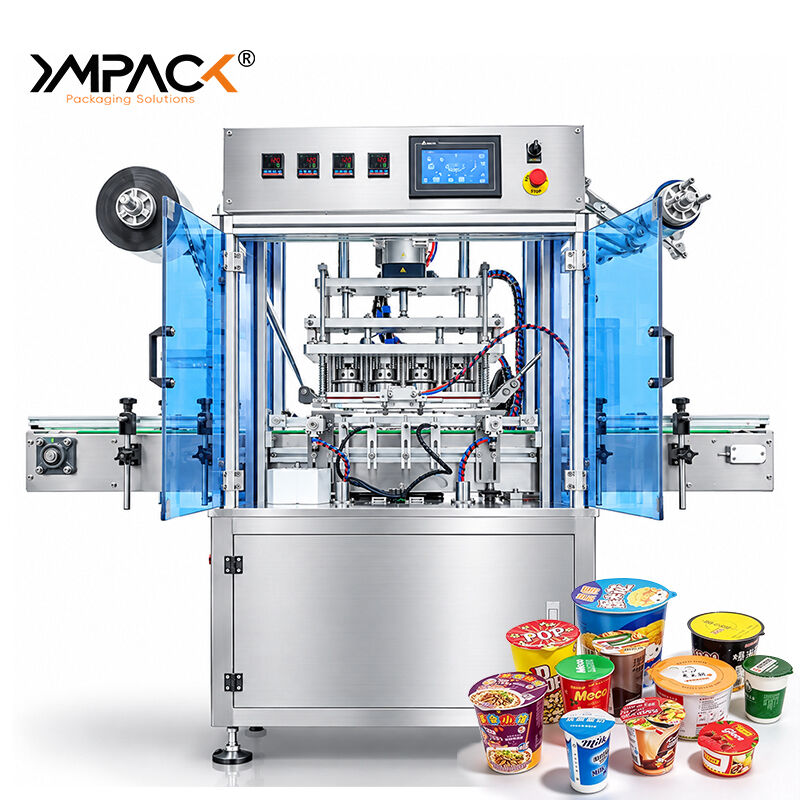

Automatic YM-HS10 Hot Sealing Machine Plastic and Glass Bottle Sealing Machine

The YM-HS10 Multifunctional Pneumatic Aluminum Foil Sealing Machine is a four-head, fully automatic heat press sealing system engineered for medium-to-large scale packaging operations. Manufactured by Shanghai YIMU Machinery Co., Ltd., this pneumatic foil sealing machine combines air-cylinder-driven sealing heads with an intuitive touch-screen control interface to deliver consistent, hermetic seals across PP, PE, PET, PS, and aluminum foil film roll materials.

Critical distinction: The YM-HS10 is a pneumatic heat press sealing machine, NOT an electromagnetic induction sealer. It uses compressed air (0.4–0.7 MPa) to drive sealing heads downward against the container rim, applying direct thermal contact and mechanical pressure to bond the foil film. This is fundamentally different from induction sealing, which relies on electromagnetic fields to heat the foil without physical contact. The pneumatic approach delivers superior seal integrity on irregular, thick-walled, or non-circular container rims — geometries where induction sealing frequently fails due to non-uniform electromagnetic coupling.

The YM-HS10's defining engineering feature is its four-head pneumatic sealing architecture. While conventional aluminum foil sealing machines process one container at a time, the YM-HS10 uses four independently driven pneumatic cylinders to seal four containers simultaneously — elevating production output to 1,800–2,400 bottles per hour, up to three times the throughput of single-head alternatives.

The pneumatic drive system delivers a critical operational advantage over mechanical or electromagnetic systems: sealing pressure is generated by compressed air through pneumatic cylinders, ensuring uniform force application across all four heads regardless of minor variations in container height or rim geometry. This eliminates the seal inconsistency that plagues gravity-fed or spring-loaded sealing mechanisms, and is particularly effective for thick bags or multi-layer composite containers.

Unlike induction sealing machines that rely on electromagnetic fields to heat the foil indirectly, the YM-HS10 uses direct contact heat press sealing — pneumatic heads physically press heated sealing elements against the aluminum foil film, transferring heat directly to the adhesive layer. This method offers distinct advantages in specific production scenarios:

• Irregular or thick-walled container rims: Induction sealing requires uniform electromagnetic coupling, which fails on non-circular or thick-rimmed containers. The YM-HS10's pneumatic press physically conforms to rim geometry, ensuring a complete seal every time.

• Pre-printed foil branding: For containers requiring branded or tamper-evident foil with printed information, direct heat press sealing preserves print integrity better than induction methods, which can distort or degrade printed elements.

• No metal cap requirement: Induction sealing typically requires a metallic cap or liner to generate eddy currents. The YM-HS10 works with any container material — including plastic, glass, and composite — without requiring metallic components.

• Elevated seal reliability: The pneumatic system's stable air pressure provides uniform force, ensuring the packaging material fully fuses at the seal point and creating a strong bond that resists leakage.

Most pneumatic foil sealing machines are optimized for a single material type. The YM-HS10 seals PP, PE, PET, PS, and aluminum foil film rolls with equal precision, and accommodates plastic bottles, glass bottles, and cups without requiring material-specific tooling changes. This multi-material capability reduces capital expenditure for contract packagers and multi-product manufacturers who would otherwise need multiple sealing machines.

The YM-HS10 features an intuitive touch-screen control system that allows operators to set sealing temperature, pneumatic pressure, dwell time, and speed parameters with minimal training. There are no complex mechanical adjustments or manual calibration procedures. Operators simply select a preset recipe for each product, and the machine executes it precisely — shift after shift, operator after operator. This eliminates a common source of seal defects in multi-shift operations.

The machine body is constructed from Stainless Steel 304, a corrosion-resistant material that meets hygiene requirements for food and cosmetic applications. This directly affects the machine's service life in humid production environments and its compliance with GMP and food safety audits. The pneumatic actuator design also simplifies the mechanical structure, improving equipment lifespan and production efficiency.

The YM-HS10 employs pneumatic heat press sealing technology, a proven method for creating airtight, leak-proof seals. The process operates in four synchronized stages:

Stage 1 — Container Positioning. Filled and capped containers enter the sealing station via conveyor. Each of the four pneumatic sealing heads aligns precisely with a container opening, guided by the machine's indexing system.

Stage 2 — Film Roll Feeding. A continuous roll of aluminum foil sealing film — pre-coated with a heat-activated adhesive layer — is advanced over the container mouths. The film roll format ensures consistent material thickness and eliminates the handling variability associated with pre-cut foil discs.

Stage 3 — Pneumatic Heat & Pressure Application. Compressed air (0.4–0.7 MPa) enters the pneumatic cylinders, driving the four sealing heads downward simultaneously. The heated sealing elements press the foil film against the container rim with precisely controlled force. The adhesive layer melts at the sealing temperature and bonds to the container rim, creating a hermetic seal.

Stage 4 — Cooling & Release. After a precisely timed sealing cycle, the pneumatic pressure releases, and the heads retract. The sealed container advances to the next station while the film roll indexes forward. Total cycle time is optimized to sustain the machine's rated capacity of up to 2,400 BPH.

This pneumatic direct heat sealing approach differs fundamentally from induction sealing, which relies on electromagnetic energy to heat the foil. Pneumatic heat press sealing is particularly well-suited for containers with irregular rims, thick-walled bottles, and applications where the foil must be pre-printed with branding or tamper-evident features.

Problem 1: "Our filling line outpaces our sealer." Many manufacturers invest in high-speed filling and capping equipment, only to create a bottleneck at the sealing station. The YM-HS10's 2,400 BPH capacity is designed to match the output of medium-to-large filling lines, eliminating the sealing bottleneck entirely.

Problem 2: "We run multiple product lines with different container materials." Switching between PP bottles, PET jars, and glass vials typically requires multiple sealing machines or time-consuming changeover procedures. The YM-HS10's multi-material compatibility means one machine handles your entire product portfolio.

Problem 3: "Our seals fail leak tests." Inconsistent heat and pressure are the leading causes of seal failure. The YM-HS10's four-head pneumatic synchronous design applies identical sealing parameters to every container, eliminating the variability that plagues single-head machines. The result is a consistent, hermetic seal that passes leak and integrity testing.

Problem 4: "Operator error is causing seal defects." The touch-screen interface removes guesswork. Operators select a preset recipe for each product, and the machine executes it precisely — shift after shift, operator after operator.

The YM-HS10 is deployed across industries where container sealing integrity is non-negotiable:

• Food & Beverage: Sauce bottles, juice cups, dairy containers, condiment jars, ready-to-eat meal cups, sealed snack cups

• Cosmetics & Personal Care: Cream jars, lotion bottles, gel containers, serum vials, essence bottles

• Chemicals & Household Products: Detergent bottles, cleaning solution containers, lubricant bottles, small non-corrosive reagent bottles

• Nutraceuticals: Powder supplement containers, liquid health drink bottles

The machine's Stainless Steel 304 construction and multi-material compatibility make it equally at home in a GMP-regulated pharmaceutical facility and a high-volume food processing plant. It is compatible with filling and capping lines, enabling integration into existing production workflows and supporting high-volume operations.

Shanghai Yimu Machinery Co., Ltd. was founded in 2016, with its start-up team originating from an 80-year-old Australian machine factory — bringing deep technical heritage to modern packaging challenges. The company operates a core team of over 68 professionals, including a robust R&D team of 10 to 20 engineers, and holds over 126 patented technologies. Cumulatively, YIMU has successfully completed more than 10,000 projects across the packaging industry.

Engineering Depth. Every YM-HS10 is backed by rigorous factory testing and a machinery test report. We do not ship machines that have not been validated against real production conditions.

Responsive After-Sales Support. We provide video technical support and online support during and after the warranty period, with a 2-year warranty on the YM-HS10. Our support team is trained to diagnose sealing issues remotely.

Export-Ready Compliance. Our machines are packaged in export-standard wooden cases and designed to operate on 220–240V single-phase power, compatible with standard industrial power supplies in most international markets. YIMU products carry CE and SGS certifications.

Q1: Is the YM-HS10 an induction sealing machine?
No. The YM-HS10 is a pneumatic heat press sealing machine, not an induction sealer. It uses compressed air-driven cylinders to press heated sealing heads against aluminum foil film, creating a direct-contact heat seal. This is fundamentally different from induction sealing, which uses electromagnetic fields to heat the foil without physical contact.

Q2: What is the difference between pneumatic heat press sealing and induction sealing?
Pneumatic heat press sealing (used in the YM-HS10) applies direct heat and pneumatic pressure to bond the foil to the container rim. Induction sealing uses electromagnetic energy to heat the foil from within. Heat press sealing is ideal for containers with irregular rims, thick-walled bottles, and applications requiring pre-printed foil. Induction sealing is better suited for very high-speed lines with uniform container geometry.

Q3: Does the YM-HS10 require an air compressor?
Yes. The pneumatic sealing heads require a compressed air supply of 0.4–0.7 MPa. The air compressor is not included with the machine and must be supplied by the customer.

Q4: Can the YM-HS10 seal containers with diameters outside 30–150 mm?
The standard configuration supports 30–150 mm. For containers outside this range, contact our engineering team — custom sealing head configurations may be available.

Q5: What types of sealing film does the YM-HS10 use?
The machine uses roll-format sealing film compatible with PP, PE, PET, PS, and aluminum foil materials. The film must be pre-coated with a heat-activated adhesive layer suitable for the container material being sealed.

Q6: How long does it take to change over between product types?
Changeover involves adjusting sealing head alignment and selecting a new recipe on the touch screen. Typical changeover time is under 15 minutes for experienced operators — no mechanical tooling changes are required for most material transitions.

Q7: What is the power requirement?
The YM-HS10 operates on 220–240V, 50–60Hz, single-phase power with a power consumption of 2,300W. It is compatible with standard industrial power supplies in most markets.

Q8: Is the YM-HS10 suitable for GMP-regulated pharmaceutical production?
Yes. The Stainless Steel 304 construction meets hygiene requirements for pharmaceutical and food applications. However, final GMP validation depends on your facility's specific requirements and documentation protocols.

Q9: What is included in the warranty?
The YM-HS10 carries a 2-year warranty covering manufacturing defects and core components. Video technical support and online support are available throughout the warranty period.

Q10: Can the YM-HS10 be integrated into an existing filling line?
Yes. The machine is designed as a standalone sealing station but can be integrated into conveyor-based filling and capping lines. Contact us with your line specifications for integration guidance.
