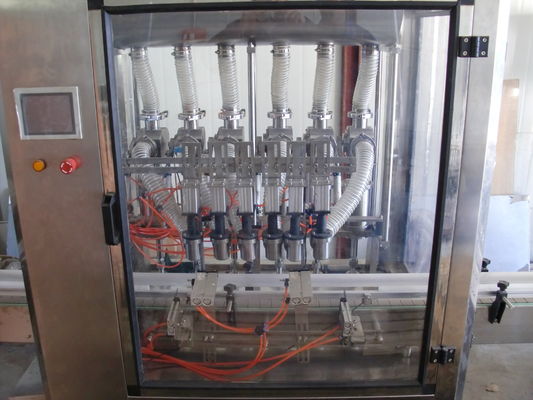

Lubricant Butter Linear Automatic Bottle Capping Machine PLC Liquid Soap Filling Machine
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE, TUV, SGS
Model Number: YMF6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden case, L2200*W1200*H2100mm, 700KG
Delivery Time: 20-25 working days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability: 24 set/month
Contact Now
Detailed Product Description
Name: Automatic Food Paste Lubricant Peanut Butter Linear Filling Machine Fuction: Viscosity Material Filling Machine
Bottle Type: 100-5000ml Filling Nozzles: 4,6,8,10,12,16
Filling Error: <0.6% Warranty: 3 Years
After-sales Service Provided: Field Installation,commissioning And Training Voltage: 380V/50-60HZ,3Phase
High Light:

PLC automatic bottle capping machine

,

Linear automatic bottle capping machine

,

Linear liquid soap filling machine

Automatic Food Paste Lubricant Peanut Butter Linear Filling Machine PLC Servo Motor Control



Factory sale disinfecting Cleaners and hand Disinfactant Liquid Sterilization Ethyl Alcohol Filling packing Machinewidely use in alcohol ,medicalalcohol ,alcohol disinfectant,alcohol hand sanitizer,disinfectant fluid,disinfectant liquid ,medical disnfectant ,hand disinfectant,84 disnfectant, antibacterial gel ,sanitizing alcohol and so on, the effect is obvious.



Function:

1. Adopt PLC programmable control system with touch screen interface. Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.

2. Automatic bottle feeding, automatic filling, automatic bottle.

3. Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.

4. Adopt double-ball screw rod filling the filling nozzle dive.

5. It can be used with capping machine, labeling machine supporting the formation of the production line

6. It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7. Having a stable and reliable operation, high production efficiency, strong adaptability.





Technical Parameter:



Filling volume 100-5000ml
Tolerance of filling quantity ≤±0.5% standard filled quantity
Yield of cap-rotating ≥99.9%
Power supply 380V/220V 50Hz,3phase
Power 1.5KW
Air supply 0.3-0.4MPa
Weight approx.800kg
Overall dimension (L*W*H)2500*1000*2000mm
Production capacity(500ml) 1200-6000bottles/hour







Drawing:

Lubricant Butter Linear Automatic Bottle Capping Machine PLC Liquid Soap Filling Machine 0



Piston pump cylinder:

control filling volume and control filling on and off. The volume of this piston cylinder is according to your filling volume to customize, Different filling volume need piston cylinder also is different, so that can ensure the filling accuracy, through Piston pump rod to push in the cylinder, then according to need filling volume to set different push stroke in the cylinder.

Lubricant Butter Linear Automatic Bottle Capping Machine PLC Liquid Soap Filling Machine 1Lubricant Butter Linear Automatic Bottle Capping Machine PLC Liquid Soap Filling Machine 2
