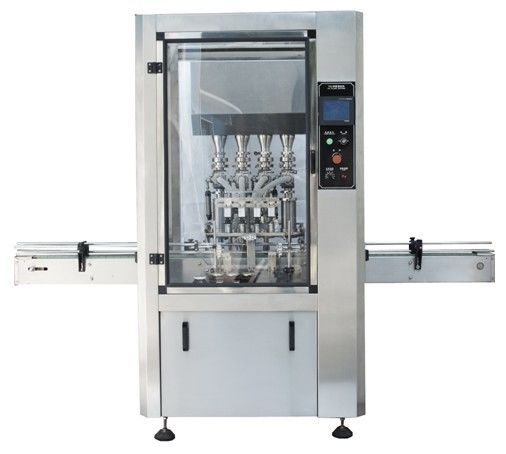

Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
  • Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
  • Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
  • Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
  • Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
  • Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling
Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling

Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling

Place of Origin Shanghai
Brand Name YIMU
Certification CE, TUV, SGS
Model Number YMF4
Product Details
Name:
Automatic Four Nozzles Viscosity Liquid Honey Filling Machine For Bottle Jar Servo Filler
Fuction:
Auto Liquid Filling
Machine Material:
SUS316 And SUS304 And Aluminum
Liquid Material:
Water, Oil, Sauce, Honey, Glue,shampoo And So On
Bottle Type:
Any Kind Container
Filling Nozzles:
2,4,6,8,10,12,16,20
Filling Error:
＜0.5%
Warranty:
2 Years
High Light:

Four Nozzles hot sauce filling machine

,

Servo hot sauce filling machine

,

Servo hot sauce bottling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiable
Packaging Details
wooden case, L2200*W1200*H2100mm, 700KG
Delivery Time
20-25 working days
Payment Terms
T/T, L/C, D/P, Western Union, MoneyGram, D/A
Supply Ability
24 set/month
Product Description

Automatic Four Nozzles Viscosity Liquid Honey Filling Machine For Bottle Jar Servo Filler



Function:

Series piston filling machine ,widely used in Daily chemical industry, Cosmetic, food industry ,high viscosity materials, shampoo,hair condition cream, hand cream diash washing liquid and so on, the effect is obvious.

1.Adopt PLC programmable control system with touch screen interface.

2.Automatic bottle feeding, automatic filling, automatic bottle.

3.Adopt servo motor drive, double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.

4.Adopt double-ball screw rod filling the filling nozzle dive.

5.It can be used with capping machine, labeling machine supporting the formation of the production line.

6.It combines optical, mechanical, electrical, gas in one. It is easy to operate a filling machine.

7.Having a stable and reliable operation, high production efficiency, strong adaptability.



Technical Parameter:



Dimension 500*850*1450mm
Weight 500KG
Name Automatic Four Nozzles Viscosity Liquid Honey Filling Machine For Bottle Jar Servo Filler
Speed 30-50 bottles/min
Filling Volume 50-5000 ml or Customized
Filling Accuracy ± 0.5%
Filling Head 2 or Customized
Filling Pump Piston Pump (servo or cylinder)
Voltage 380V, 3phase 50-60Hz  or Customized
Power 3KW



Drawing:

Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling 0

Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling 1



Filling nozzle:

Filling head diameter need customized according to your bottle mouth’s diameter.
Filling head Adopt piston pump to control.
The filling range can adjust,every filling head have anti-drop device,ensure when filling won’t leak.
The piston pump control filling heads,ensure the filling accuracy is high, can control between +/-0.5%.
Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling 2
Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling 3Four Nozzles Hot Sauce Filling Machine Servo Filler For Honey Bottling 4
