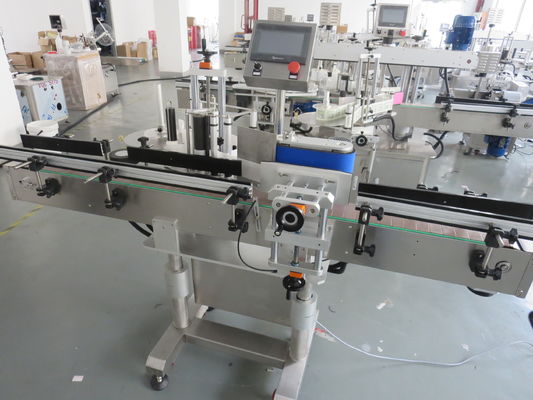

PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler
  • PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler
  • PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler
  • PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler
  • PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler
  • PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler

PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM510
Product Details
Name:
Automatic Round Bottle Labeling Machine
Customized:
Any Size Round Bottle
Material:
SS304+aluminum
Certification:
CE,CE/GMP/ISO/TUV
Labeling Error:
<1mm
Printer:
Date Code Printer (optional)
Conveyor:
L2000*W130*H1000-1100mm
Label:
Transparent Or Normal Label
High Light:

PLC round container labeling machine

,

Tabletop round container labeling machine

,

PLC tabletop wrap around labeler

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L2100*W700*H1500mm, 300KG
Delivery Time
1-10days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
20 sets per month
Product Description

YM510 Automatic Glass Bottle Honey Labeler Plastic Can Jar Water Juice Sauce Labeling Machine





Description:

  • This machine be widely used in food,drinks,cosmetics and daily chemical industries, for round bottles /jars /cans, any cylinder products labeling.

  • Machine can be used alone, or connect with packing line conveyor full automatic using.

  • The machine is made of anticorrosive stainless steel with convenient cleaning and disinfection, meeting national regulations and requirements for food machinery and food sanitation.

  • It is equipped with height adjusting handwheel, which makes it convenient to adjust the height of the labeling head to meet the needs of products of different diameters.

  • The machine adopts imported optical fiber infrared sensor, which provides accurate position control. It adopts imported PLC and 7" touch screen human-machine interface with parameterized production control and simple operation.

  • It adopts automatic bottle feeding hopper without the need of manually putting the bottles one by one, realizing simple and quick operation.



Feature:



1. PLC system with HMI machine interface digital LCD touch screen controller, which can help you adjust working data easily

2. Precision servo motor on labeling head for feeding label, high accuracy and high speed, around 15 memory recipes for labeling parameters easy for change bottle size in HMI.

3. It is made of high quality material and imported machine parts. stainless steel frame construction and components are standard;

4. Label feeding speed is synchronized with conveyor speed automatically to ensure quality labeling;

5. Hot foil code printer and transparent sensor is available.







Technical parameter:



No.
Item
Data
1
Label height (Width)
10-179mm, if more big label, customized
2
Label length
20-300mm, if more big label, customized
3
Labeling speed
0-100 bottles/min
4
Bottle diameter
below 125mm, if more big bottle, customized
5
Labeling error
< ±0.8mm
6
Reel label outer diameter
Max.360mm
7
Reel label inner diameter
76mm
8
Machine size
L2000 * W850 * H1800 mm
9
Machine weight
300KG
10
Power
700W
11
Power supply
110V, 220V, 50/60Hz, 1 phase





Layout:
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 0
       PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 1
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 2
Touch screen
Siemens touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameters, with production counting function,power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.
Ribbon Printer
It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging
process of bottle and improve production efficiency.
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 3
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 4
PLC control system
Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine safe and running steadily.
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 5

Wrap around labeling device

Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label.
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 6




PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 7

High quality labeling head

1. It can be adjusted automatically according to the label height.
2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.


Applicaiton

Type:Round bottle, jar, can, tin.
Material:Plastic, glass, metal.
Label: Transparent and normal sticker label.



PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 8PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 9

Certifications
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 10
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 11
Company Introduction
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 12



Our Customers
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 13



PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 14
Packing&Shipping
PLC Water Juice Round Container Labeling Machine Tabletop Wrap Around Labeler 15
