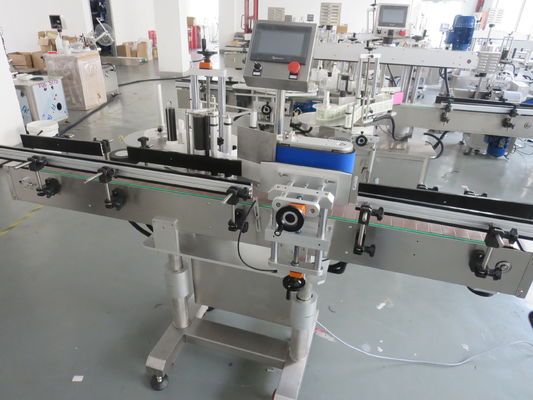

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz
Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz
Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE
Model Number: YM510
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: 400KG wooden case, L2150*W760*H1520mm,
Delivery Time: 1-12days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 18 sets per month
Contact Now
Detailed Product Description
Speed: 20-150bottles/min Weight: 300KG
Name: Automatic Self Adhesive Round Bottle Labeling Machine Warranty: 5 Years
After-sales Service Provided: Online Support,Video Technical Support,Field Installation,Free Spare Parts Labeling Accuracy: ±1mm
Application: Food,Medical,Beverage,Chemical,Commodity Suiable Bottle: Any Size Round Bottle
High Light:

60Hz plastic bottle labeling machine

,

tabletop plastic bottle labeling machine

,

Wrap Around tabletop labeler

YM510 Automatic Wrap Around Round Bottle Labeler Beverages Cans Jars Labeling Machine





Application:

This machine be widely used in food,drinks,cosmetics and daily chemical industries.for round bottle /jars/cans/any cylinder products labeling. such as sauce bottle, drinking bottle, hand santizer and so on.





Technical parameter:



No.
Item
Data
1
Label height (Width)
10-179mm, if more big label, customized
2
Label length
10-300mm, if more big label, customized
3
Bottle diameter
Below 133mm, if more big bottle, customized
4
Labeling speed
0-100 bottles/min
5
Labeling error
＜ ±0.8mm
6
Roll label outer diameter
Max.360mm
7
Roll label core inner diameter
76mm or 40mm
8
Power supply
110V/220V, 50/60Hz, 1 phase
9
Power
700W
10
Machine weight
400KG
11
Machine size
L2000 * W800 * H1800 mm



Feature:

1. This auto labeler is equipped with HMI and PLC control panel, which can help you adjust working data easily.



2.  Machine has hot foil code printer and transparent sensor are optional.



3. Precision servo motor driven on labeling head for feeding label, more steady and fast speed.



4. Stainless steel frame construction and components are standard, it is made of high quality material and imported machine parts.



5. Label feeding speed is synchronized with conveyor speed automatically to ensure quality labeling.

6. change different size label and different size bottle, no need change any spare parts,  very easy for adjusment.



Machine Layout:

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz 0

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz 1

Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz 2Automatic Wrap Around Plastic Bottle Labeling Machine Tabletop Labeler 60Hz 3



Tag:

pet bottle stickering machine,

automatic sticker machine,

wrap around labeling machine
