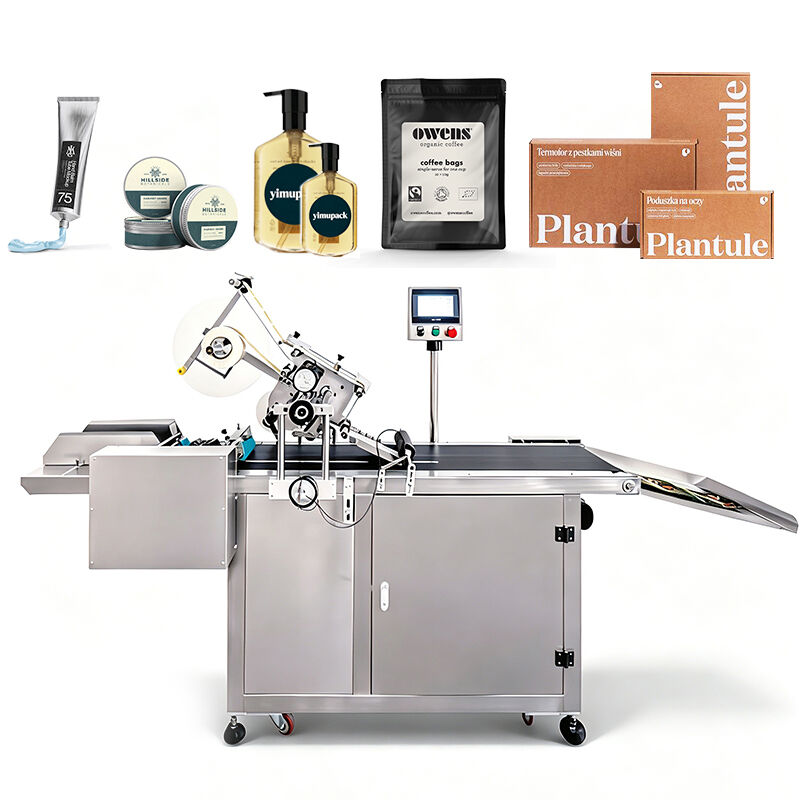

YM210D Multifunction Automatic Flat‑Surface Paging Labeling Machine — Vacuum‑Conveyor‑Assisted Multi‑Item Mixed‑Run Label Applicator

Nowadays many contract packagers and consumer‑goods manufacturers run mixed‑SKU production lines, switching among flexible pouches, paper hang‑tags, scratch‑off security cards and thin flat cartons within single working shifts. Most ordinary paging labeling machines on market are built for single‑material scenarios; when handling glossy transparent labels,  security stickers or thin‑warped substrates, they suffer material shifting, label mis‑detection and high reject rate. Many low‑cost models cannot export production statistics to plant‑level MES system, forcing manual spreadsheet logging and hindering smart‑factory digital transformation.

YM210D multifunction automatic flat‑surface paging labeling machine adopts built‑in vacuum adsorption conveyor system, which firmly holds flat‑format workpieces during conveying to avoid wandering, curling or position offset, even for ultra‑thin, easily‑warped mylar pouches and thin paper cards. This multifunctional platform supports multiple sticker categories: common adhesive labels, transparent clear labels,  security labels and QR‑code traceability stickers. Besides standalone batch operation, it reserves data communication ports for connecting with factory MES / ERP systems, enabling automatic production‑data upload for digital workshop management. Whether you process food pouches, cosmetic sample sachets, promotional scratch‑off cards or lightweight flat cartons, YM210D delivers consistent labeling quality under mixed‑run conditions. Every machine undergoes full‑load aging test and optional on‑site FAT (Factory Acceptance Test) before shipment.

Key Mixed‑Run Production Pain‑Points YM210D Labeling Machines Solves

Derived from real‑world consulting cases for multi‑product packaging workshops, these frequently‑ignored challenges reduce overall equipment efficiency for mixed‑SKU lines:

1. Workpiece displacement & warping during conveying:Traditional friction‑belt conveyors cannot hold thin, soft or curled materials. Pouches and cards shift sideways while travelling to labeling station, generating skewed, offset labels and high scrap rate.
2. Detection failure for transparent & security labels:Standard general‑purpose label sensors often fail to recognise clear transparent stickers or special security labels, leading to missed‑label or multi‑label malfunctions.
3. No digital‑data output for smart‑factory management:Numerous paging labelers only show counter readings on local HMI screen, without data export interfaces. Operators need manually copy production figures to spreadsheets, introducing human recording‑errors for batch traceability records.
4. Extra investment for multiple dedicated labelling devices:Factories processing both bags, cards and small cartons are forced to purchase two or three separate labeling machines, consuming valuable workshop floor space and increasing equipment capital expenditure.
5. Complex re‑calibration when switching different sticker types:Many competing labelers require sensor disassembly and physical adjustment every time users swap between ordinary labels, transparent labels and security  stickers, extending change‑over downtime.
6. Difficulties verifying machine performance remotely:Buyers cannot conduct formal FAT acceptance check; they discover performance defects only after machine arrives at their overseas workshop.

YM210D Labeling Machines systematically addresses above‑mentioned mixed‑run manufacturing pain‑points. The integrated vacuum adsorption conveyor stabilises thin, curled substrates during transportation; multi‑mode label‑sensor supports transparent, security and ordinary adhesive stickers with parameter preset without hardware disassembly; reserved MES‑compatible data‑port enables automatic production‑log uploading; multifunctional mechanical structure handles pouches, cards and light cartons on single unit; sensor‑mode presets are saved within HMI memory for one‑click recall; we support remote‑video FAT acceptance procedure prior to shipment for risk mitigation.

Full Working Workflow Of YM210D Multifunction Vacuum‑Conveyor Paging Labeling Machines

The workflow integrates bulk feeding, adaptive paging separation, vacuum adsorption conveying, multi‑mode label detection, servo‑driven label application, data statistics and optional MES data‑upload modules:

1. Bulk workpiece loading:Operators stack mixed flat‑format goods (mylar pouches, hang‑tags, scratch‑off cards, thin cartons) into large‑capacity hopper. Single‑time loading supports 100‑300 pieces, partial loading is acceptable for small‑batch mixed orders.
2. Adaptive friction paging separation:Adjustable‑tension paging assembly separates single workpiece from stacked pile. Parameters can be saved as recipe profiles for different material types. Each separated piece drops onto vacuum‑adsorption conveyor surface.
3. Vacuum‑adsorption stabilised conveying:Adjustable negative‑pressure vacuum suction holds workpieces firmly against conveyor belt. Even easily‑curled thin pouches and soft paper cards remain fixed without sideways shifting during transportation to labeling station. Operators adjust vacuum suction strength via touch‑screen HMI according to workpiece thickness and weight, no mechanical disassembly required.
4. Multi‑mode label & product detection:Switchable sensor modes support ordinary paper stickers, transparent clear labels and security labels. Dual‑channel photoelectric sensors validate real‑product presence. “No‑item no‑label” interlock prevents label waste caused by feeding gaps.
5. Servo‑driven label peeling & elastic roller pressing:Servo motor drives label‑roll unwinding. Stickers get peeled off release liner. Soft elastic pressing roller compresses label evenly onto flat workpiece surface, squeezing trapped air to deliver bubble‑free, wrinkle‑free labelling effect. Release‑liner waste is wound onto dedicated take‑up reel.
6. Batch‑counting & optional MES data transmission:Post‑labelling sensor counts finished‑goods quantity. Production batch data can be stored locally or transmitted automatically to factory MES / ERP system for digital‑workshop record‑keeping. Finished workpieces travel toward output collecting station.

Optional upgrade modules:Thermal transfer coder, ink‑jet variable‑data printer, finished‑goods stacking collector. Printing accessories can be retrofitted post‑delivery without purchasing with base unit.

Distinct Multifunctional Competitive Advantages Versus Peer Paging Labeling Equipment

Differentiators centre on vacuum‑adsorption conveyor, multi‑mode label‑sensor for transparent / security stickers, MES‑data‑connectivity, mixed‑material one‑machine capability and remote FAT acceptance, different from narrative angles in previous versions:

• ✅ Built‑in adjustable vacuum adsorption conveyor system:Negative‑pressure suction firmly fixes thin, curled, flexible pouches and paper‑cards during conveying, drastically reducing workpiece wandering and label‑offset defects, solving long‑standing thin‑substrate conveying pain‑point of traditional friction‑belt paging labelers. Vacuum suction intensity is adjustable via HMI touch‑screen.
• ✅ Multi‑mode label‑sensor preset for diverse sticker categories:Supports ordinary adhesive labels, transparent clear labels and security labels. Sensor‑mode parameters can be saved into product‑recipe profiles, users achieve one‑click switch without disassembling sensor hardware, shortening sticker‑type change‑over duration.
• ✅ MES‑ERP‑ready reserved data‑communication interface:Real‑time batch‑production counting data can be exported or uploaded automatically to plant management systems, eliminating manual spreadsheet entry errors and supporting smart‑factory digital traceability management.
• ✅ True multifunctional mixed‑run compatibility on single machine:Handles mylar pouches, PE zip‑lock bags, scratch‑off security cards, hang‑tags and lightweight flat cartons within size range. Avoid purchasing multiple separate labeling machines, saving workshop floor‑space and initial equipment investment capital.
• ✅ Remote‑video FAT (Factory Acceptance Test) service available:Before shipment, buyers can perform formal FAT acceptance through live‑video streaming, verify mixed‑material labelling performance, production‑counting function and data‑output logic, to confirm machine meets production requirements before dispatch.
• ✅ Large‑capacity HMI recipe memory bank:Save over 25 groups of independent product‑recipes, including paging tension, vacuum‑suction intensity, sensor‑mode, labeling speed and position parameters. Fast recall when switching between different workpieces and sticker types.
• ✅ Modular hardware architecture for future‑oriented upgrades:Reserved mechanical and electrical interfaces support later retrofitting coding unit, stacking collecting station and custom guiding fixtures, protecting customers’ initial investment as product portfolio expands.

Target Industries & Practical Mixed‑Run Application Scenarios

YM210D multifunction vacuum‑conveyor paging labeling machine is widely deployed for multi‑SKU mixed‑batch production scenarios across multiple industrial sectors:

1. Food & snack contract‑packaging industry:Mylar food pouches, tea flat envelopes, pet‑food sachets, seasoning sample bags, lightweight food cartons.
2. Cosmetic & personal‑care OEM manufacturing:Skincare trial‑size sachets, detergent sample pouches, cosmetic hang‑tags, cosmetic small flat gift boxes.
3. Printing & promotional‑goods sector:Scratch‑off lottery security cards, gift hang‑tags, greeting cards, kraft‑paper instruction inserts, anti‑fake sticker labelling projects.
4. Electronics component packaging workshop:Anti‑static flat pouches, hardware‑accessory paper‑back cards, component‑packing flat cartons.
5. Digital‑oriented smart‑factory workshops:Factories requiring automatic production‑data upload to MES / ERP for batch traceability and production‑performance statistics.

Compatible substrates:mylar composite foil pouch, PE zip‑lock bag, CPP film sachet, coated art‑paper card, kraft cardboard, lightweight thin‑wall paper carton; Compatible stickers:ordinary adhesive label, transparent clear label,security label, QR‑code traceability sticker.

Complete Technical Specification Table｜YM210D Multifunction Automatic Flat‑Surface Paging Labeling Machine

Custom note:If your pouches, cards or cartons go beyond standard dimension scope, please send real‑physical samples for our factory‑lab testing, we deliver complete mixed‑material test‑video feedback before formal purchase‑order placement.

Why Partner With Our Factory For Multifunctional Labelling Automation

We are original Shanghai‑based packaging‑machinery manufacturer, not trading intermediary. Our core strengths focus on multifunctional mixed‑run solutions, digital‑factory‑oriented technical support and pre‑shipment FAT acceptance service for global industrial buyers:

1. Pre‑order mixed‑material sample‑testing service:Customers can ship multiple‑type workpiece samples (pouches, cards, cartons) to our internal test‑lab. Our engineers run real‑mixed‑run labelling trials and return full test‑video report for risk assessment.
2. Strict multi‑step pre‑shipment quality‑control workflow:Every YM210D undergoes component incoming‑inspection, 48‑hour continuous full‑load aging‑test, vacuum‑conveyor performance check and multi‑mode‑label detection‑function test before shipment; remote‑video FAT acceptance is available.
3. Digital‑factory‑oriented technical documentation:We provide MES‑data‑interface protocol description document besides standard English operation‑manual, maintenance checklist and step‑by‑step operation‑training videos.
4. Transparent long‑term spare‑part‑supply channel:Consumable wearing‑parts (vacuum‑belt, pressing‑roller, friction‑belt) can be purchased directly from our factory at factory‑cost price even after warranty expires.
5. Predictable production‑cycle & export‑grade anti‑shock packing:Standard YM210D lead‑time: 15‑20 working‑days after deposit receipt. Machine packed inside fumigated reinforced wooden export‑crate with internal anti‑shock foam filling for sea‑freight transit protection.
6. Custom‑engineering service for special‑mixed‑production‑requirements:We adjust vacuum‑suction range, paging‑mechanism and data‑output logic according to your on‑site mixed‑SKU production‑conditions and MES‑system specifications.

Frequently Asked Questions

Q1:How does the vacuum‑adsorption conveyor improve labelling quality for ultra‑thin curled pouches?

A:Traditional friction‑belt conveyors cannot restrain thin curled substrates, causing sideways wandering during transportation. The adjustable vacuum‑adsorption conveyor uses negative‑pressure suction to hold workpieces firmly onto belt surface. Operators tune vacuum‑suction intensity via HMI touch‑screen according to workpiece thickness, minimising offset‑label reject rate for thin, easily‑warped mylar pouches and soft paper‑cards.

Q2:Can YM210D detect transparent clear labels and security stickers? Do I need to replace hardware?

A:YM210D is equipped with multi‑mode label‑sensor, pre‑set sensor‑modes for ordinary, transparent and security stickers. You only need to recall corresponding recipe profile on HMI, no sensor hardware replacement or disassembly required. For highly‑special custom security labels, sending samples for pre‑test is strongly advised.

Q3:What does MES‑compatible data‑interface mean? Which data can YM210D transmit to factory management‑system?

A:YM210D reserves standard data‑communication port. It can transmit real‑time finished‑goods‑count, batch‑number, machine‑running‑status and alarm‑code data to customer‑side MES / ERP system, eliminating manual spreadsheet logging work for digital‑workshop traceability management. Please provide your MES communication‑protocol requirements during inquiry stage.

Q4:What is remote FAT acceptance? Is this service free‑of‑charge?

A:FAT (Factory Acceptance Test) means verifying machine performance before shipment. Remote‑video FAT is free‑of‑charge for formal‑order customers. Our engineers run mixed‑material labelling test, multi‑sticker‑mode test, counting‑function and data‑output test under live‑video streaming for your acceptance confirmation.

Q5:What are main consumable wearing‑parts for vacuum‑conveyor version YM210D, and what is their service‑life?

A:Key consumables include vacuum suction‑belt, paging friction‑belt and silicone pressing‑roller. Under two‑shift daily‑production, vacuum‑suction‑belt normally lasts 7‑9 months, friction‑belt lasts 8‑12 months. We deliver complete wearing‑parts‑list together with machine for your spare‑part‑inventory‑planning. Consumables are not covered by warranty.

Q6:Can YM210D work inline with existing filling‑sealing production‑line?

A:Yes, inline integration is supported. Please share existing‑equipment running‑speed, workshop‑layout sketch and MES‑protocol specification if applicable. Our mechanical‑engineer will evaluate feasibility and provide modification‑suggestion. It can also run as standalone offline batch‑processing workstation.

Q7:What is warranty‑coverage? How do you handle overseas‑customer technical‑faults?

A:Core electrical components enjoy 2‑year warranty‑period; consumable wearing‑parts are excluded from warranty. Remote‑video‑call troubleshooting‑support is always available. On‑site overseas‑service can be negotiated at extra‑cost (buyer bears travel‑related‑expenses). Spare‑parts can be purchased at factory‑cost‑price after warranty‑expiry.

Q8:What is MOQ? Can you make non‑standard custom‑modification?

A:Minimum‑order‑quantity is 1 set. Non‑standard custom‑modification service is acceptable. Please provide workpiece dimension‑data, sticker‑specifications, mixed‑production‑requirements and MES‑system‑related‑demands for our engineering‑evaluation.

Request Mixed‑Material Sample Test, FAT Arrangement & Custom Quotation

If you are evaluating multifunctional labelling‑automation upgrade for mixed‑SKU production‑workshop, please send us key‑information: your mixed‑workpiece dimension‑range, sticker‑types (ordinary / transparent / security label), target production throughput, whether you need MES‑data‑connection or optional coding‑collecting accessories. Our engineering‑sales‑team will assess your mixed‑run‑scenario and deliver tailored‑quotation plus mixed‑material‑sample‑testing proposal and remote‑FAT arrangement guidance.
