Customer happy, we are happy.
 |
| Place of Origin: | Shanghai China |
| Brand Name: | YIMU |
| Certification: | CE |
| Model Number: | YM215H |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, L2700*W1100*H1700mm, 800KG |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets per month |
| Product Name: | High Speed Oral Liquid 1ml,5ml 10ml Ampoule Labeling Machine Date Printer Tube Labeler | Function: | High Speed Horizontal Labeling Machine |
|---|---|---|---|
| Application: | Chemical,Medical | Capacity: | 300-500 PCS/min |
| Labeling Accuracy: | ＜±0.5mm | After-sales Service Provided: | Online Support,Video Technical Support |
| Warranty: | 3 Years | Printer: | Date Code Printer By Air Power |
| High Light: | High Speed vial labeller,10ml vial labeller,10ml ampoule labeling machine |
||

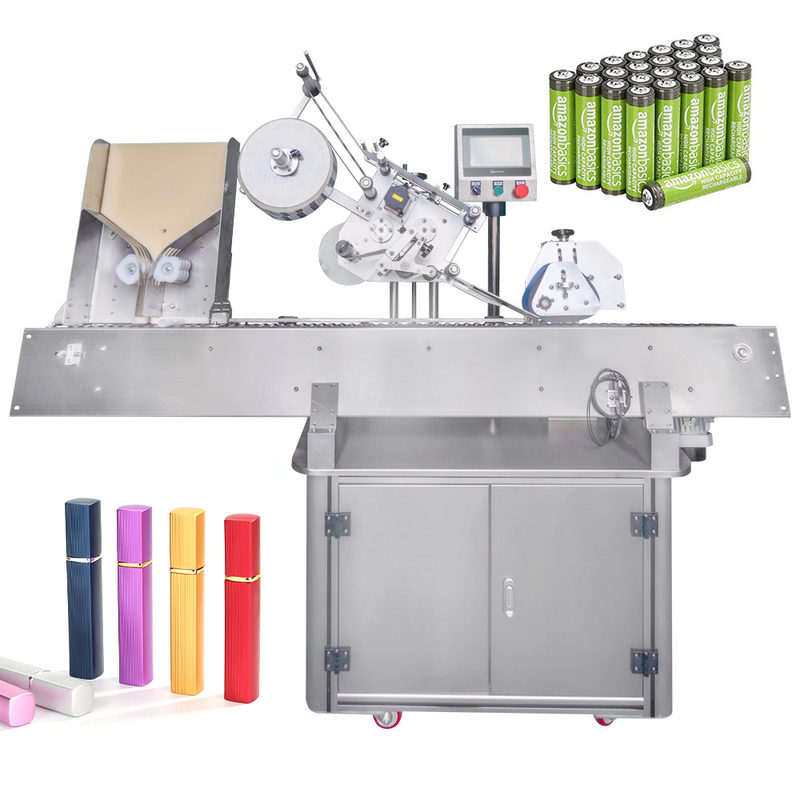

High Speed oral liquid 1ml,5ml 10ml ampoule labeling machine date printer tube labeler
Automatic horizontal labeling machine belongs to round bottle labeling machine, which is suitable for labeling the circumference and semicircle of unstable cylindrical objects. It adopts horizontal transmission and horizontal labeling to increase stability and improve labeling efficiency. The label can be printed with the production date, batch number and spray bar code. It can be equipped with inkjet printer to the conveyor belt, which can print the production date, batch number, bar code and other information on the product before or after labeling. Widely used in medicine, cosmetics, electronics, hardware, plastic and other industries. The machine is also suitable for assembly line production.
Product Characteristics
(1), Advanced affinity man-machine interface system, easy operation, complete function, has the rich online help function.
(2), Special tilting feeding roller conveyor design , the paste item automatic positioning.
(3), Automatic photoelectric detection, it has without label no stick and without label automatic correction or alarm automatic detection function, to prevent leakage and waste.
(4), The machine structure is simple, compact, easy to operation and maintenance.
(5), The machine adopts famous brand motor drive, the feeding label speed stability, reliability.
Technical Parameter
| Label width | 20-150mm |
| Label length | 20-150mm |
| tube diameter | 7-25mm |
| Labeling speed | 0-500 PCS/min |
| Labeling accuracy | ±0.5mm |
| Power | 1200W |
| Label reel inner diameter | 76mm |
| Label reel outer diameter | 350mm |
| Net weight | 700kg |
| Machine size | 2200×110×1750mm(L×W×H) |
Main Configuration:
| N0. | Name | Brand |
| 1 | PLC control system | Siemens or Mitsubishi |
| 2 | Servo motor | Raynen (Shanghai) |
| 3 | Servo motor driver | Raynen (Shanghai) |
| 4 | Frequency changers | Delta(Taiwan) |
| 5 | Photoelectricity | Panasonic(Japan) |
| 6 | labels photoelectric sensor | FOTEK(Taiwan) |
| 7 | Touches screen | Siemens or WEINVIEW (Taiwan) |
| 8 | Conveyor motor | TAIBANG(Taiwan) |
| 9 | Stainless steel material | 304SUS |
| 10 | Aluminium alloy | Surface anode gush arenaceous technology |
Sample:
vial feeding device, using screw separating and feeding, vertical moving and feeding, easy for operation.
High speed labeling head, this is special labeling head for 500PCS/min capacity, steady label feeding.
Pneumatic coding machine: only use air supply as power, fast speed, 500PCS/min, code clearly.
