YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
  • YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar
YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar

YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM525
Product Details
Name:
Automatic Beer Bottle Sticker Labeling Machine
Warranty:
4 Years
Labeling Speed:
30-60pcs/min
Labeling Accuracy:
Less Than ±0.6mm
Function:
Beer Bottle Labeling Machine
Key Word:
Popcorn Labeling Machine
High Light:

YM525 Front Back Labeler

,

Popcorn Jar Front Back Labeler

,

Vinegar beer bottle labeler

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L245*W80*H155cm, 500KG
Delivery Time
13-14 working days
Payment Terms
T/T, L/C, D/P, Western Union
Supply Ability
30set/month
Product Description

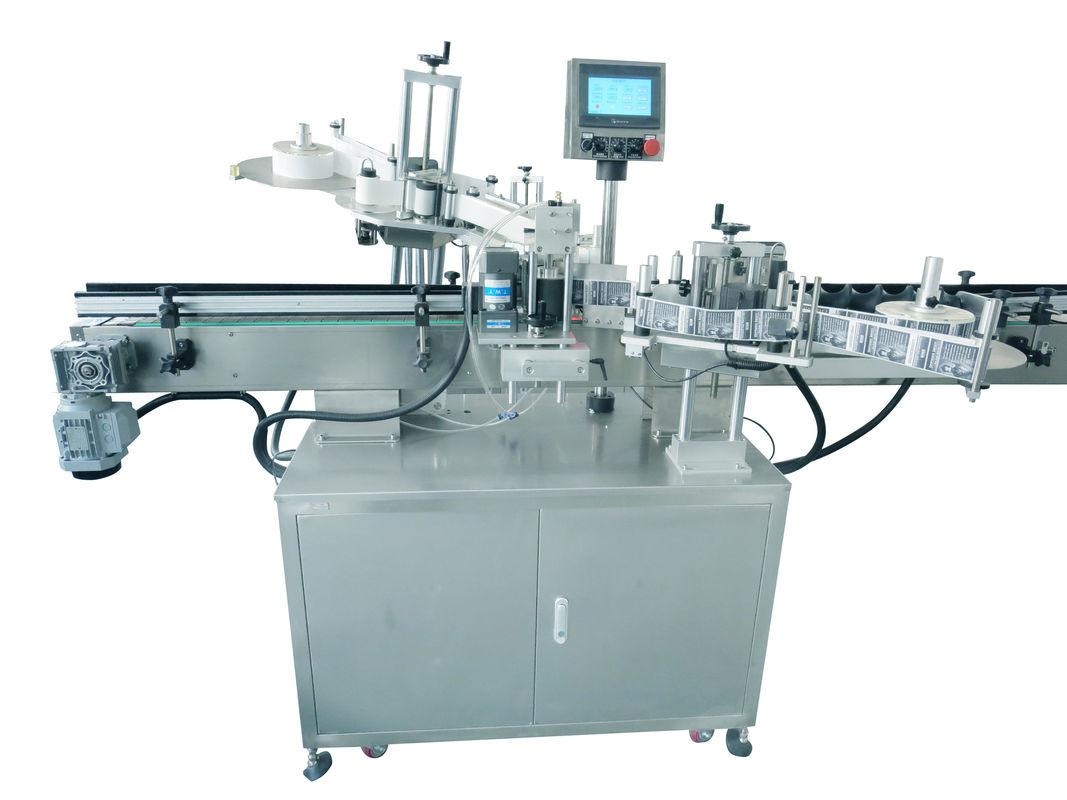

YM525 Automatic vinegar Beer Bottle Body And Neck Sticker Labeling Machine For Popcorn Jar



Application:

Suitable for labeling round bottles, single label and neck label can be pasted. With tapered bottle labeling function; The perimeter location detection device can be used to label the designated position on the perimeter surface. The equipment can be used alone, also can be used with packaging line or filling line.



Technical parameter:

1. Machine can do two labels labeling simultaneous, one for bottle body, one for bottle neck. Almost for beer, wine and beverages bottle.
2. Machine touch screen control, man-machine interaction interface with operation teaching function, simple operation；
3. Automatic bottle division, star wheel bottle division mechanism, effectively eliminate the bottle itself error caused by the bottle is not smooth, improve the stability；
4. Simple adjustment, configuration before and after, left and right and up and down directions, plane inclination, vertical inclination adjustment seat, different bottle shape switch without dead Angle, simple and quick adjustment；
5. Intelligent control, automatic photoelectric tracking, automatic label detection function, to prevent leakage and label waste；
6. Solid health, mainly made of stainless steel and senior aluminum alloy, solid quality, in line with GMP production requirements.



Parameter:

Moder YM525
Labeling speed 30-60 bottles/min
Labeling accuracy ＜0.5mm
Machine size 2500*800*1700mm
Machine Weight 500KG
Label size Width:10-177mm,Length:10-300mm
Power 220V/380V 50Hz,1200W
Label roll

Inner core :76mm

Outside roll Max.: 360mm



Working principle:

The sensor detects the passing bottles and send a signal back to the control system.Atthe appropriate position, the system controls the label to be sent out and attached tothe suitable position .The product pass through the labeling device and the label isattached to bottles well.



Drawing:



YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar 0

Sample:

YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar 1

YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar 2YM525 Beer Vinegar Round Bottle Front Back Labeler Machine For Popcorn Jar 3
