Customer happy, we are happy.

|
| Place of Origin: | Shanghai China |
| Brand Name: | YIMU |
| Certification: | CE |
| Model Number: | YM610 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | wooden case, L2750*W1200*H1670mm, 550KG |
| Delivery Time: | 10-14 working days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 30 set/month |
| Name: | Glass Bottle Honey Sauce Flat Labeler Ketchup Lubrication Oil Side Labeling Machine | Function: | One Head Labeling Machine |
|---|---|---|---|
| Application: | Food,Commodity,Medical,Chemical,Beverage | After-sales Service Provided: | Video Technical Online Support,Free Spare Parts |
| Warranty: | 2 Years | Labeling Speed: | 20-100pcs/min |
| High Light: | Square Bottle pharmaceutical labeling machine,Automatic pharmaceutical labeling machine,Pharmaceutical square bottle label applicator |
||

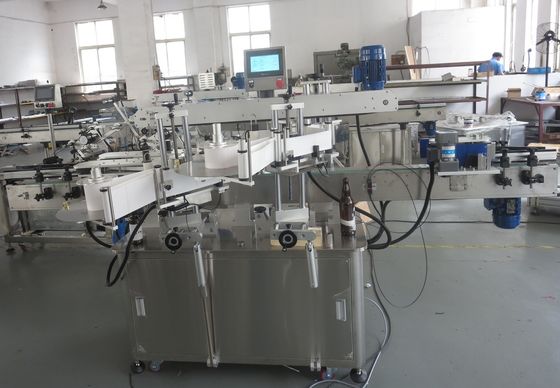

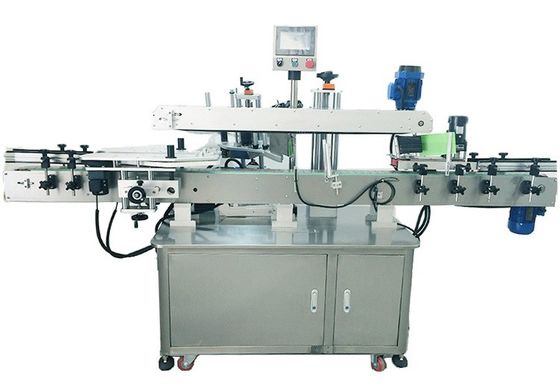

YM610 Automatic Glass Bottle Honey Sauce Flat Labeler Ketchup Lubrication Oil Side Labeling Machine
Function:
1, For automatic labeling on any shape bottles for the pharmaceuticals, daily chemicals, food & beverages industries.
2, The labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.
3, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.
4, Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
5, PLC and LCD touch screen control panel with easy operation, servo motor for label feeding power.
6, High labeling accuracy, fast labeling speed, long-time using.
7, Transparent sensor and deta code printer are all optional.
Technical parameter:
| Model | YM610 |
| Capacity (PCS/min) | 0-120(depond on bottle and label size) |
| Conveyor running side | from left to right / from right to left |
| Conveyor speed(meter/min) | ≤40 |
| Labeling error | ＜ ±0.5 mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 360 mm(max) |
| Suitable for label size | W:5-300mm, L:10-500mm |
| Suitable size of labeling objects | any size |
| Power supply(In China) | AC220V 50/60HZ single phase (customized) |
| Power | 1000 W |
| Weight | 500 KG |
| Machine size | 2500(L) 800 (W) 1650 (H) mm |
Machine Drawing:
Main Configuration:
| N0. | Name | Brand |
| 1 | PLC |
Mitsubishi (Japan) / Siemens(Germany) |
| 2 | HMI | WEINVIEW (Taiwan) / Siemens(Germany) |
| 3 | Servo motor | KINCO (Germany) / Raynen (China) |
| 4 | Frequency changers | Delta(Taiwan) / Siemens(Germany) |
| 5 | Detection bottle sensor | KEYENCE (Japan) / BOJKE (China) |
| 6 | Detection label sensor | FOTEK(Taiwan) / SICK (Germany) |
| 7 | Stainless steel material | 304SS |
| 8 | Aluminium alloy | Surface anode gush arenaceous technology |
Our Customer:
Contact Person: Tyson
Tel: +8617302103515
