1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine
  • 1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine
  • 1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine
  • 1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine
  • 1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine
  • 1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine

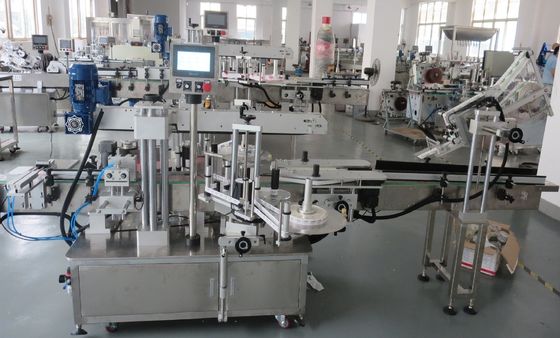

1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM630
Product Details
Name:
Three Heads Square Jar Labeler For Flat Plastic Box Bottle Labelling Machine
Function:
Front Back Top Labeling Machine
Labeling Speed:
30-150 PCS/min
Labeling Precision:
<±0.8mm
Warranty:
4 Years
After-sales Service Provided:
Video Technical Support,Online Support
High Light:

1500W bottle label pasting machine

,

sticker bottle label pasting machine

,

automatic sticker labelling machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L3100*W1310*H1810mm, 780KG
Delivery Time
20-25 working days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
15 set/month
Product Description

YM630 Automatic Three Heads Square Jar Labeler For Flat Plastic Box Bottle Labelling Machine



Function:

1, The automatic labeling machine is composed of three labeling head (front, back and top side), bottle separating device, bottle correcting device, conveyor, top pressing conveyor, frame and control system, It adopts mechatronics technology, realizes modern operation with English HMI, text type and button type, label feeding belt, synchronous separation label etc.

2, it not only be used on a single machine, but also be matched with the production line. Achieve self-adhesive labels and self-adhesive films on the side of the product side, the large curved side of the side, and the square peripheral surface.

3, This machine is suitable for flat bottles, round bottles, flat and oblate jar and any other shape product labeling.

4, It can realize turn on(off) any labeling head,  so machine can do round or suqare bottle wrap around labeling, square bottle front and back two sides labeling, honey jar front and back and top three sides labeling, and so on.

5, This high quality machine can be used with automatic filling machine,capping machine to realize the full packaging process.

6, Machine has code printing and transparent sensor for optional.

7, whole machine use PLC and HMI control system, can setting and save different bottle parameter in HMI,  easy for operation. all screw adjustment place has scale.



Technical parameter:

Labeling Capacity(pcs/min)
30-150PCS /min (depends on bottle and label size)
Bottle(box) height
30-380mm
Bottle(box) width
20-200mm
Label Size
(L)25-300mm*(H)15- 300mm
Label number
Double or Single or Three Sides or wrap around
Roll Inside
φ76mm
Roll Outside Diameter
φ360mm
Power supply
AC220V 50Hz/60Hz, 1phase, 1500W
Machine Szie
About 3000*1350*1800mm
Packing Size
About 3100*1300*1800mm
Net weight/Gross weight
About 700kg/780kg



Machine Drawing:

1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 0



1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 11500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 21500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 31500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 4

1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 5

Our Customer:



1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 6

1500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 71500W Three Heads Plastic Bottle Label Pasting Machine Automatic Sticker Labelling Machine 8
