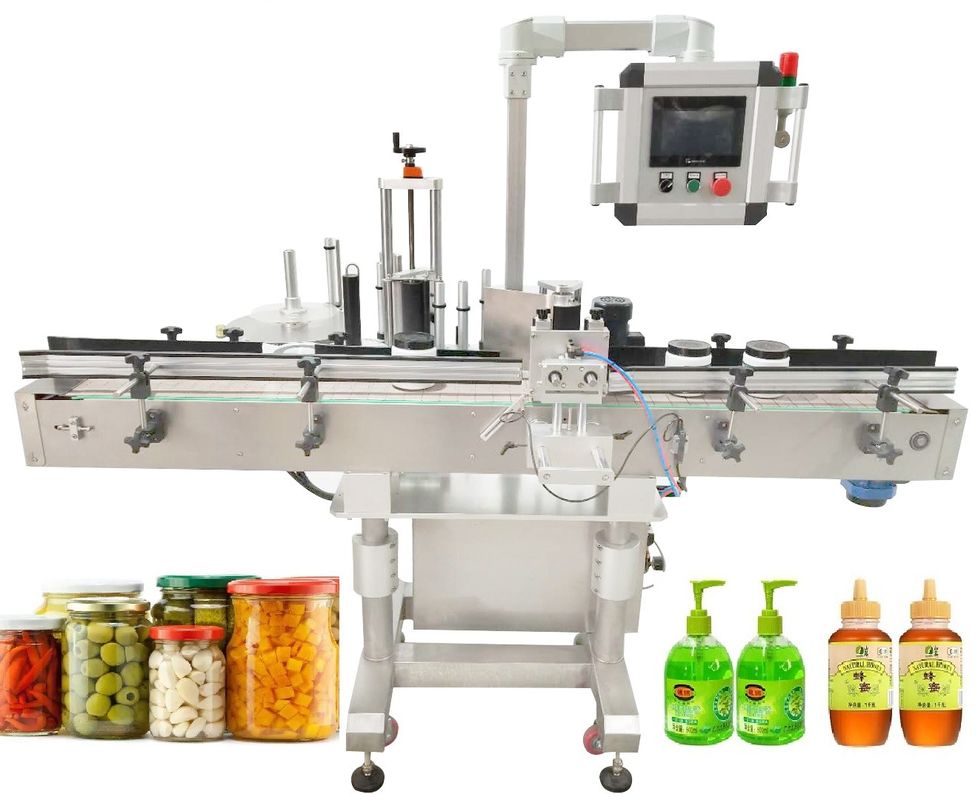

220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment
  • 220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment
  • 220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment
  • 220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment
  • 220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment
  • 220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment

220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM515
Product Details
Application:
Chemical,Commodity,Food,Medical,Beverage
Speed:
20-55bottle/min
Labeling Error:
<±0.5mm
Voltage:
220V/110V, 1ph, 60Hz
Warranty:
5 Years
Bottle Diameter:
20-120mm
Name:
PET Plastic Round Bottle Bucket Sticker Label Applicator Glass Wine Jar Labeling Machine
After-sales Service Provided:
Online Support,Video Technical Support
High Light:

220V pet bottle stickering machine

,

pet bottle stickering machine

,

220V wine labeling equipment

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L2100*W660*H1500mm, 360KG
Delivery Time
1-12days
Payment Terms
T/T, L/C, MoneyGram
Supply Ability
16 sets per month
Product Description

YM515 Auto PET Plastic Round Bottle Bucket Sticker Label Applicator Glass Wine Jar Labeling Machine





Introduction:

Automatic round bottle bucket Labeling Machine can meet the needs of all round bottle and tapered bottle, bottle labeling switching between simple, convenient adjustment.

Wide application range: self-adhesive labels, adhesive film, electronic monitoring code, bar code etc.

Application Industry: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other industries. Application example: PET round bottle labeling, plastic bottle labeling, canned food, etc.



Feature:

1. Labeling precision is very high on round bottle.



2. PLC combined with HMI machine interface digital LCD touch screen controller, easy for operation.



3. Precision stepper or servo motor drive on labeling head.



4. Stainless steel 304 frame construction and component are standard.



5. Label feeding speed is synchronized with conveyor speed to ensure quality labeling automatically.





Technical parameter:

No.
Item
Data
1
Label height
10-178mm, if more big label, customized
2
Label length
10-400mm, if more big label, customized
3
Bottle diameter
Below 132mm, if more big bottle, customized
4
LabelLing speed
20-53 bottles/min
5
LabeLling error
< ±0.5mm
6
Air supply
0.3-0.4MPa
7
Power supply
730W, 110V/220V, 50/60Hz, 1 phase
8
Machine size
L2000 * W780 * H1700 mm
9
Machine weight
300KG
10
Reel label Inner diameter
76mm
11
Reel label outer diameter
Max.360mm





Customized Functions :

1. Add code printing on label.

2. Chain conveyor can be replaced with other type conveyor, the width,length,hight of conveyor can be customized.

3. Transparent sensor for transparent label.

4. The custom function is applicable to all automatic sticker label applicator labeling machine

5. HMI information can be customzied



Machine layout:



220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 0




220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 1
220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 2



220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 3
Touch screen
Touch screen, Powerful, color touch screen control, English optional operating interface, powerful data memory function, convenient and intuitive, can store multiple groups of labeling parameters, with production counting function, power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.
Ribbon Printer
It can be equipped with ribbon printer, which can print production date and batch number on line, reduce the packing process of bottle and improve production efficiency.
220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 4
220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 5


PLC control system
Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine running steadily and long life.
Frequency changer control conveyor and other speed.







clamp type labeling device

Automatically detect the bottle, stick label on bottle, suitable for more different size bottle and label.
220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 6



220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 7

High quality labeling head


220V/110V Auto PET Bottle Stickering Machine Wine Labeling Equipment 8
