Flat Surface Labeling Machine
>
|
| Place of Origin | Shanghai |
| Brand Name | YIMU |
| Certification | CE |
| Model Number | YM520X |

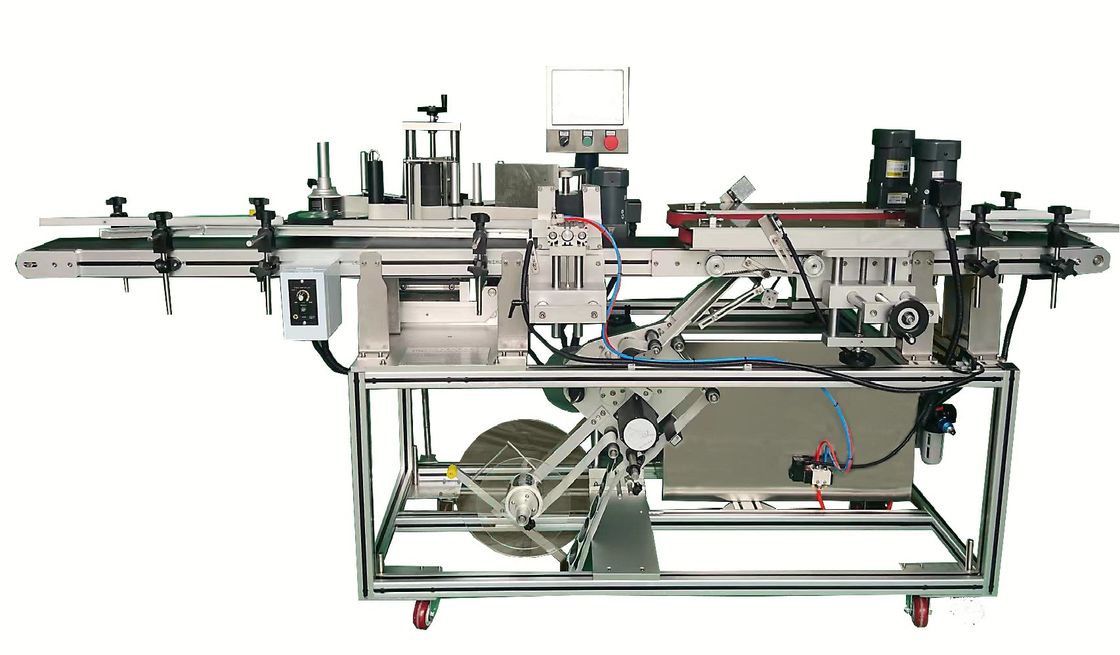

YM520X Automatic Bottle Body Bottom Two Heads Labeling Machine For Wax Candle Jar Labeler
Application:
This two heads labeling machine is suit for different kinds and size objects labeling on side and bottom surface, such as aloe, wax candle jar and bottles. Machine can customized as requirements, longer or shorter or others. Machine can be operation alone or connect with production line.
| Moder | YM520X |
| Labeling speed | 30-50 PCS/min |
| Labeling accuracy | 0.8mm |
| Machine size | 2400*1000*1650mm |
| Label size | Width:10-150mm,Length:10-300mm |
| Label roll |
Inner core: 75mm Outside Max. diameter: 360mm |
| Power | 220V/380V 50Hz,1200W |
Sample:
Main configuration
| No | Name | Brand |
| 1 | PLC control system | Mitsubishi (Japan) /Siemens (Germany) |
| 2 | HMI | WEINVIEW (Taiwan) /Siemens (Germany) |
| 3 | stepper motor | RAYNEN (Shanghai) /KINCO (Germany) |
| 4 | stepper motor driver | RAYNEN (Shanghai) /KINCO (Germany) |
| 5 | Frequency changers | Delta(Taiwan) /Siemens (Germany) |
| 6 | Photoelectricity | KEYENCE (Japan) |
| 7 | labels photoelectric sensor | FOTEK(Taiwan) |
| 8 | Bearings | Japan |
| 9 | Stainless steel material | 304SS |
