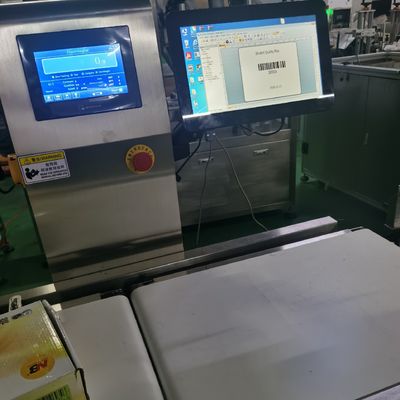

Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System

Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System

  • Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
  • Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
  • Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
  • Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
  • Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
Integrated Vegetable Fruit Sandwich Chocolate Labeling Machine With ERP System
Product Details:
Place of Origin: Shanghai, China
Brand Name: YIMU
Certification: CE
Model Number: YM320P
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: wooden case, L1100*W920*H1700mm, 300KG
Delivery Time: 15-18 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 26set/month
Contact Now
Detailed Product Description
Name: Auto Vegetable Meat Lamb Chop Beaf Steak Bread Sandwich Pizza Weighing Printing Labeling Machine Function: Weighing, Printing Label, Labeling Machine
Keyword: Vegetable Weighing Labeling Machine Printer: Zebra ZE500
Warranty: 2 Years Labeling Speed: 20-35 Pcs/min
Voltage: AC110/220V, 50-60Hz, 1phase After-sales Service Provided: Free Spare Parts And Online Video Technical Support
High Light:

Integrated chocolate labeling machine

,

ERP chocolate labeling machine

,

ERP fruit labeling machine

Auto Vegetable Meat Lamb Chop Beaf Steak Bread Sandwich Pizza Weighing Printing Label Applicator



  • The intelligent labeling line designed for automatic weighing,printing and labeling of prepackaged goods comes in different versions. Due to its modular design it can be optimally configured for products and performance requirements in the food area.

  • With intelligent visual quality control and automated activation of process data via the new function operation is easier thereby reducing errors during the packaging process.Network-compatible, individually expandable, have best labeling technology features and are easy to operate and service.

  • Machine integrate ZE500 zebra printing engine, online weighing platform, PC with printing software, label applicator, PLC and HMI control system and whole machine support frame, it is a whole system.

  • Widely used for any top or side flat product online printing labeling in food industries, such as Vegetable, Meat, Lamb Chop, Beaf, Steak, Bread, Sandwich, Pizza and so on.

  • Machine can print bar code, QR code, word, easy image and so on,  connect with ERP system, or intranet, easy to edit printing information.



Printer type:
ZE500/TSC/ German Avery 924 can be optional
Printing type:
Thermal transfer/thermal rmal
Print resolution:
300dip
Print speed:
6-10 inches/s
Print size:
Width 25-104mm; Length 25-250mm
Induction mode:
Gap induction (transmissive), reflective
Print material:
Coated Paper, Synthetic Paper, Glassindy
Roll size:
ID Φ76mm, OD: 300mm
Label size:
Width 25.4-116mm;Thin 0.06-0.30mm
Carbon ribbon:
Width 25-110mm; Length 450 M MAX OD: 90mm, When winding the ribbon, the coated side
faces outside
Communication interface External interface:
R232 serial port/ Parallel parallel port/ USB2.0/ Ethernet port
Barcode type:
one-dimensional code : Code39,Code93,Code128UCC,Code128subsetsA.B.C,Co dabar,EAN-8.  QR code:PDF-417,Maxicode,DataMatrix,QR Coode,Aztec
External hardware font panel: touch screen operation
Touch screen operation
Alarm system:
Four-stage alarm, lack of label alarm, lack of ribbon alarm, sensor failure alarm, missing label alarm
Pneumatic part:
AirTAC Cylinder, AirTAC Solenoid Valve
Label speed(pcs/min)
20~40pcs/ min
Accuracy
±1-2mm
Label thin:
25-104mm
Label length:
25-250mm
Labeling part:
Flat labeling
Printing content:
Text, serial number, date, pattern, one (two-dimensional) barcode, etc.
Weighing range
5-3000g
Product size Range:
L:300 W:300 H:3-180mm
Accuracy:
±1%
Weight(kg)
About 120kg
Voltage(V)
220V
Power(W)
550W
Machine(L×W×H)(mm)
1800×800×1450
Major Material
304 stainless steel
