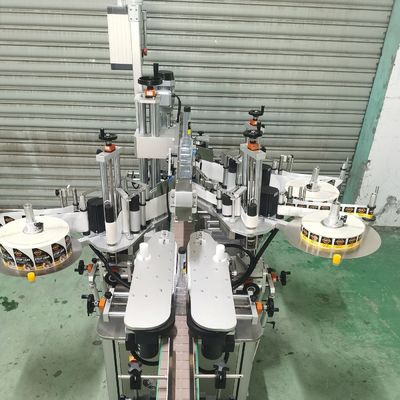

Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle

Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle

Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle
Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle
Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE
Model Number: YM620
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: wooden case, L2880*W1350*H1820mm, 700KG
Delivery Time: 10-13 working days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 30 set/month
Contact Now
Detailed Product Description
Name: Auto Fast Speed Front Back Two Sides Labeling Machine For Pesticide PET Square Bottle Labeler Keyword: Pesticide Bottle Labeling Machine
Application: Commodity,Medical,Beverage Labeling Speed: 20-180 Bottles/min
Labeling Precision: <±1mm Dimension(l*w*h): 280(L) 135(W) 182(H)cm
Bottle Type: Flat Bottle, Square Jar 100-5000ml Material: SS304
High Light:

Auto Front Back Labeler

,

Commercial Front Back Labeler

,

Pesticide Bottle commercial labeling machine

Auto Fast Speed Front Back Two Sides Labeling Machine For Pesticide PET Square Bottle Labeler



This labeling machine is a multifunctional labeling machine, which is suitable for side labeling or positioning labeling of round, square and flat bottles. After being familiar with this equipment, it can be applied to the side labeling of various bottles in other industries, such as food, cans, cosmetic round bottles, pharmaceutical bottles, etc.


Application industries:

Cosmetics, daily chemicals, electronics, medicine, hardware, plastics and other industries.

Analysis of the labeling process:
bottle release → bottle separation → conveying →bottle guide → top pressing → product inspection → labeling → labeling → bottle collection.

1. Put the bottle on the conveyor belt.
2. The bottle separation mechanism divides the pitch of the bottles.
3. Driven by the conveyor belt, the bottle automatically runs to the right labeling mechanism.
4. The bottle is automatically guided under the action of the bottle guiding mechanism to ensure the accuracy of the labeling.
5. The bottle is pressed by the top pressing mechanism to ensure that it will not shake when labeling, which will affect the labeling accuracy.
6. Entering the detection position, the electric eye detects the bottle, and the measured object signal is fed back to the PLC.
7. The traction motor rotates and sends out the label, which is attached to the bottle.
8. The label-covering mechanism rolls the bottle to cover the label.
9. The bottles are conveyed and collected in the take-up tray.



Technical parameter:

Type
DOUBLE SIDES LABELING MACHINE
Applicable Industries
Cosmetics, daily chemicals, electronics, medicine, hardware, plastics and other industries
Condition
New
Application
suitable for side labeling or positioning labeling of round, square and flat bottles
Packaging Type
Wooden case
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V, 50HZ(can be customized)
Place of Origin
China

Henan
Dimension(L*W*H)
2800mm×1350mm×1820mm
Weight
530KG
Warranty
2 Year
Key Selling Points
High accuracy
Machinery Capacity
30-160pcs/min(base on products and labels size)
Warranty of core components
1 Year
Core Components
PLC, Other, Motor
Label accuracy
Within +/-1.0mm
Label size
Length: 20mm~200mm; Width (backing paper width): 20mm~175mm
Product size
Length: 20mm~250mm, Width: 30mm~90mm, Height: 60mm~280mm.



Sample:

Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle 0



Our Customer:



Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle 1

Auto Front Back Labeler Commercial Labeling Machine For Pesticide PET Square Bottle 2
