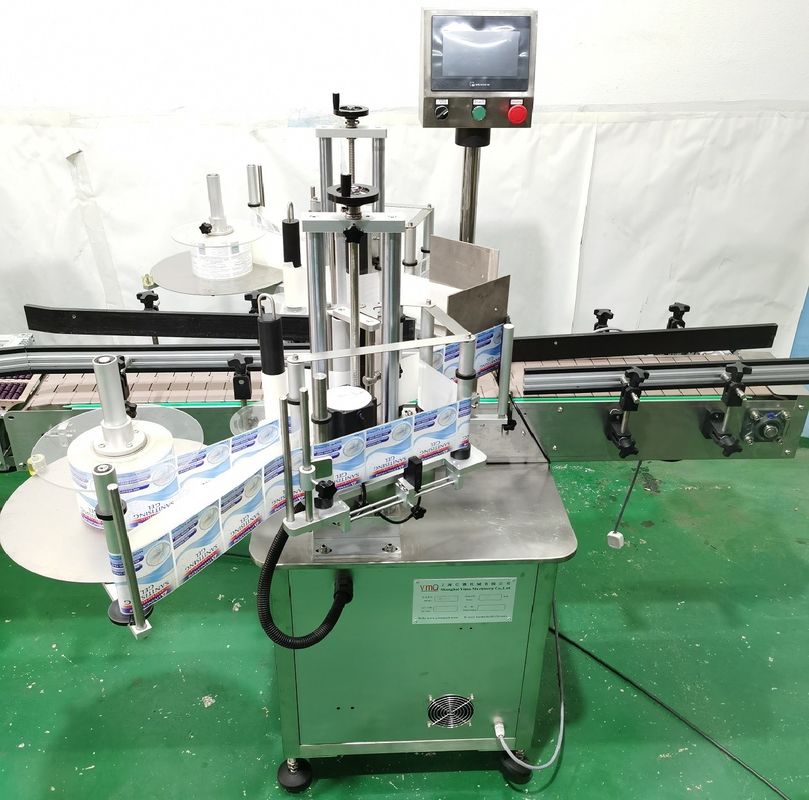

Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg
  • Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg
  • Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg
  • Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg
  • Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg

Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg

Place of Origin Shanghai China
Brand Name YIMU
Certification CE
Model Number YM620J
Product Details
Name:
Automatic Carton Big Bottle Flat Food Drum Square Barrel Front Back Labeler Machine
Application:
Chemical,Food,Commodity
Labeling Speed:
20-150 Bottles/min
After Sales Serive:
7X24 Online Video Calling Support, Spare Parts
Labeling Accuracy:
<±1mm
Dimension:
2500(L) 1300(W) 1750(H)mm
Warranty:
3 Years
Bottle Type:
Big Square Flat Bottle, Caront, Box, Drum
High Light:

Carton Front Back Labeler

,

Automatic Front Back Labeler

,

carton labeling machine 580kg

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L2060*W1200*H1560mm, 400KG
Delivery Time
10-15 days
Payment Terms
T/T, L/C, D/A, D/P, Western Union
Supply Ability
35 set/month
Product Description

Automatic Carton Big Bottle Flat Food Drum Square Barrel Front Back Labeler Machine



The automatic square bottle labeling machine can apply adhesives or self-adhesive labels to various square containers, from small glass bottles to larger tin cans made of most materials (such as PVC, PET, ceramics, etc.)


In stock, fast delivery in 5 days
Accept non-standard customization
Can be connected to filling machine, packaging machine, cartoning machine and other production lines



Function:

1. Machine stuiable for big size flat bottle and drum two sides labeling, such as >5L bottle, big can, carton, food container, box, medicine, daily chemical industry and so on.
2, PLC and HMI control panel with easy operation, many units parameter setting and save. Famous servo / stepper motor is adopted to achieve close-loop control and meet high speed and high precision positioning.

3. Label break down or runs out machine will stop, Malfunction self-testing and display with alarm. Pressing belt and the host gear are connected to guarantee absolute synchronization of the two conveyor belts without any adjustment.

4. Machine can use alone or connect with filling capping packing line use.



Technical parameter:

Model
YM620
applicable label length (mm)
20mm ~ 285mm
applicable label width (bottom paper width /mm)
20mm ~ 180mm
applicable product diameter (for round bottle) and height
diameter: 25mm ~ 90mm height: 25mm ~ 300mm
applicable to the volume diameter (mm)
280mm
applicable to the volume diameter (mm)
76mm
labeling accuracy (mm)
±1mm
marking speed (m/min)
servo: 5 ~ 25m/min step: 5 ~ 19m/min
labeling speed (PCS /min)
step: 25 ~ 55pcs/min servo: 30 ~ 65pcs/min
conveying speed (m/min)
5 ~ 18m/min
power (W) : traction step
570W traction servo: 980W
air pressure (Mpa)
0.6 ~ 0.8mpa
frequency (HZ)
50HZ
voltage (V)
220V
weight (kg)
about 580kg
overall size of the equipment (mm)
(length × width × height)
2850mm×1200mm×1830mm


Machine Drawing:

Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg 0

Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg 1

Main Configuration:

N0. Name Brand
1 PLC Mitsubishi (Japan) / SIEMENS
2 Servo motor KINCO (Germany)
3 Servo motor driver KINCO (Germany)
4 Frequency changers Delta(Taiwan) / SIEMENS
5 Bottle sensor KEYENCE (Japan)
6 Label sensor FOTEK(Taiwan)
7 HMI WEINVIEW (Taiwan) / SIEMENS
8 Bearings Japan
9 Stainless steel material 304SS
10 Aluminium alloy Surface anode gush arenaceous technology




Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg 2

Our Customer:



Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg 3

Automatic Big Bottle Front Back Labeler Carton Labeling Machine 580kg 4
