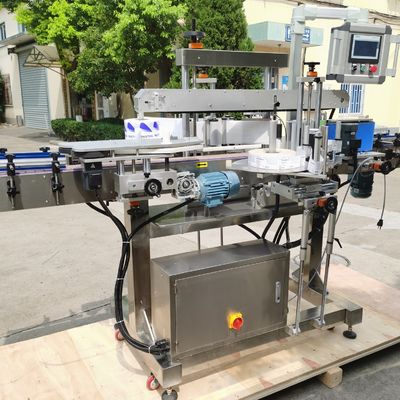

Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system
  • Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system

Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system

Place of Origin Shanghai China
Brand Name YIMU
Certification CE
Model Number YM620
Product Details
Name:
Automatic High Performance Big Flat Bottle Front Back Two Sides Sticker Labeling Machine
Labeling Speed:
20-180 Bottles/min
Labeling Accuracy:
<±0.8mm
Warranty:
5 Years
Usage:
Flat Bottle Self Adhesive Labeling Machine
Voltage:
AC110/220/240V 1phase, 50-60Hz
After-sales Service Provided:
Online Video Technical Support, 7×24, Free Spare Parts
High Light:

Shampoo auto label applicator

,

PLC auto label applicator

,

PLC label applicator for flat surfaces

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L290*W130*H180CM, 630KG
Delivery Time
14-20days
Payment Terms
T/T, L/C, D/A, D/P, Western Union
Supply Ability
25 sets/month
Product Description

Automatic High Performance Big Flat Bottle Front Back Two Sides Sticker Labeling Machine



Description:

Automatic double side labeling machine is a side labeling machine, suitable for single side and double side labeling of flat bottles, round bottles, square bottles, such as shampoo flat bottles, lubricating oil flat bottles, hand sanitizer round bottles, such as double side labeling, two side paste, double label to improve production efficiency, widely used in the daily chemical, cosmetics, petrochemical, pharmaceutical and other industries.We are looking forward to hear from you.

Features:

1. It can make labeling on both sides at the same time efficiently. Of course client can choose to make one side or double sides labeling.

2. Client can choose to add coding machine.

3. It can work separately or work connecting with conveyor.

4. Equipped with touch screen & PLC control system.

5. With widely applicability, which can labeling on the whole or the half of the round bottles, if you want to change the type of the bottle, the adjustment is very simple;

6.It could equipt with label printer.



Technical parameter:

Name Shampoo Bottles Labeling Machine Front and Back Labeler
Labeling head number 2 (according to customer need)
Labelin Speed 20-200pcs/min
Accuracy +-1mm
Applicable height of container 30-350mm
Applicable width of container 20-120mm
Applicable label height 5-210mm
Applicable label length 25-300mm
Label inner diameter 76mm
Label outer diameter 380mm
Weight 550kg
Dimension 2800*1350*1800 mm





Machine Drawing:

Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system 0



Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system 1



Our Customer:



Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system 2

Shampoo Sticker Auto Label Applicator For Flat Surfaces PLC control system 3
