Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent

Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent

  • Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
  • Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
  • Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
  • Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
  • Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent
Product Details:
Place of Origin: Shanghai
Brand Name: YIMU
Certification: CE, SGS
Model Number: YMF4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: wooden case, L2800*W1300*H1900mm, 900KG
Delivery Time: 32-35 days
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 20set/month
Contact Now
Detailed Product Description
Product Name: Automatic 3L Laundry Detergent Scouring Agent Cleaner Filling Machine For Piston Pump Filler Material: SS304/316
Function: Piston Pump Filling Filling Range: 500-5000ml
Warranty: 5years Application: Pharmacy, Chemical,Commodity,Food
Voltage: AC220V/380V Driven Type: Electric,Pneumatic
High Light:

3L automatic bottle filling machine

,

Piston automatic bottle filling machine

,

3L piston filling machine

Automatic 3L Laundry Detergent Scouring Agent Cleaner Filling Machine For Piston Pump Filler



Main Features

1) This machine has compact structure, flawless control system, and is convenient operate with high grade automatism.

2) All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed.

3) Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling.

4) The capping head has constant twisting movement, which ensures capping Quality, without damaging caps.

5) Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting.

6) Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation.

7) There is flawless equipment for overload protecting, which can protect effectively machine and operator safety.



Parameter:



Voltage
110/220V 50-60HZ
Filling Range
5 - 100mI/10-3000ml/50-500ml/100-1000ml/500-3000mI/1000 -5000ml
Working Speed
(based on Water)
10-40bottles/min
20- 50bottles/min
30-70bottles/min
40-80bottles/min
Filling Accuracy
≤土0.5%
Air Pressure
0.3-0.7MPa
Machine weight
400kg
450kg
600kg
700kg
Power of whole machine
1200W
Dimension
200x120x230cm
200x120x230cm
250x130x230cm
280x130x250cm



Sample:

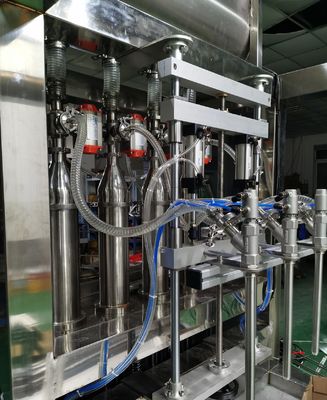

Piston 3L Automatic Bottle Filling Machine For Laundry Detergent Scouring Agent 0



After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.



Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.
