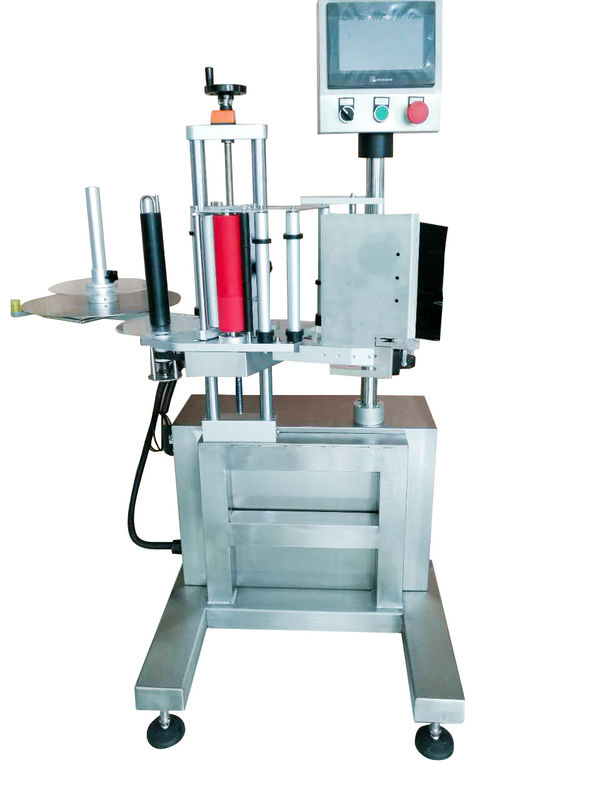

GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min
  • GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min

GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min

Place of Origin Shanghai
Brand Name YIMU
Certification CE
Model Number YM310
Product Details
Name:
Automatic Online Box Side Labeling Machine For Carton Big Drum Labeler
Application:
Medical,Chemical,Beverage,Food,Commodity
After-sales Service Provided:
Video Technical Online Support, Free Spare Parts
Warranty:
6 Years
Labeling Speed:
30-100pcs/min
Labeling Accuracy:
No More Than +/- 1mm
High Light:

100pcs/min Flat Bottle Labeling Machine

,

GMP Flat Bottle Labeling Machine

,

GMP label applicator for flat surfaces

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
strong wooden case, L900*W650*H1500mm, 150KG
Delivery Time
5-7 working days
Payment Terms
T/T, L/C, Western Union, MoneyGram
Supply Ability
30 set/month
Product Description

YM310 Automatic Online Box Pallet Side Labeling Machine For Carton Big Drum Labeler


Function:

1, Machine for automatic labeling on any big objects, such as pallet, box, carton, big drum and so on,  for the pharmaceuticals, daily chemicals, food & beverages industries.

2, Machine stick label from left or right side of object.  It not has conveyor, it is very smart,  put along with conveyor, it can work.

3, The labeler automatically detects label size, and stick label on object.  worker can choose saved parameters, a very useful feature for users with multiple products to label.

4, It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.

5, PLC and HMI control system are all English, easy operation, servo motor for label feeding power.

6, High labeling accuracy, fast labeling speed, long-time using.

7, Deta code printer are all optional.

 Technical parameter:

Model YM310
Capacity (PCS/min) 0-100 (depond on label size)
Conveyor not have conveyor, put on line,it can be work, very smart
Labeling error < ±1 mm
The inner diameter of label roll 76 mm
The outer diameter of label roll 360 mm(max)
Suitable for label size W:15-310mm, L:20-300mm
Suitable size of labeling objects any size big drum, carton, box, pallet
Power supply(In China) AC220V 50/60HZ  1ph (customized)
Power 350 W
Weight 150 KG
Machine size 1100(L) 900 (W) 1650 (H) mm



Machine Drawing:

GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min 0



Main Configuration:

N0. Name Brand
1 PLC

Mitsubishi (Japan) / Siemens(Germany)

2 HMI WEINVIEW (Taiwan) / Siemens(Germany)
3 Servo motor KINCO (Germany) / Raynen (China)
4 Detection bottle sensor KEYENCE (Japan) / BOJKE (China)
5 Detection label sensor FOTEK(Taiwan) / SICK (Germany)
6 Stainless steel material 304SS
7 Aluminium alloy Surface anode gush arenaceous technology



Our Customer:
GMP Carton Automatic Flat Bottle Labeling Machine Applicator For Flat Surfaces 100pcs/min 1
