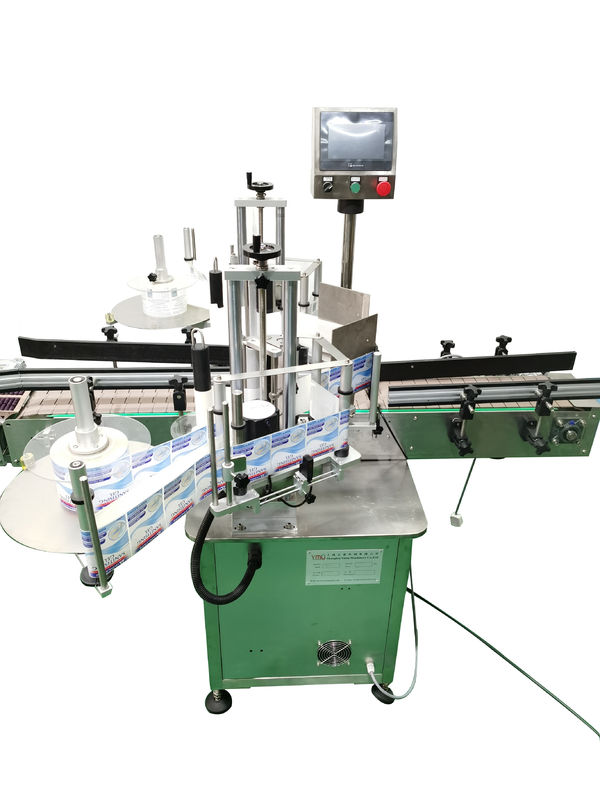

Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg
  • Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg

Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg

Place of Origin Shanghai China
Brand Name YIMU
Certification CE
Model Number YM620J
Product Details
Name:
Automatic Big Bottle Vinegar Drum Front Back Two Sides Labeling Machine
Application:
Chemical,Beverage,Food,Commodity,Medical
Labeling Speed:
20-50 Bottles/min
Usage:
Adhesive Labels Bottles Labeling Machine
Labeling Accuracy:
<±1mm
Dimension:
2008(L) 1380(W) 1730(H)mm
Warranty:
5 Years
Bottle Type:
Big Square Flat Bottle /jars/cans Drum
High Light:

double Sides Labeling Machine Applicator

,

700kg double Sides Labeling Machine

,

700kg coffee bag label applicator

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiate
Packaging Details
wooden case, L2060*W1200*H1560mm, 400KG
Delivery Time
10-16 days
Payment Terms
T/T, L/C, D/A, D/P, Western Union
Supply Ability
35 set/month
Product Description

Automatic Big Bottle Vinegar Drum Front Back Two Sides Labeling Machine For Carton





Function:

1. Machine stuiable for big size flat bottle and drum two sides labeling, such as >5L bottle, big can, carton, food container, medicine, daily chemical industry and so on.
2, PLC and HMI control panel with easy operation, many units parameter setting and save. Famous servo / stepper motor is adopted to achieve close-loop control and meet high speed and high precision positioning.

3. Label break down or runs out machine will stop, Malfunction self-testing and display with alarm. Pressing belt and the host gear are connected to guarantee absolute synchronization of the two conveyor belts without any adjustment.

4. Machine can use alone or connect with filling capping packing line use.

5. All components are precisely processed by CNC to ensure high quality. All electrical configurations are big international brand, such as Simens, Mitsubishi, WEINVIEW, Danfoss, Schneider, Yaskawa, Keyence, Omron, SMC and so on.



Technical parameter:

Label height 10-270mm
Label length 10-300mm
Labeling speed 2000-3000 bottles/hour
Labeling accuracy ±1mm
Power supply 1200W, 220V/50Hz
Label reel inner diameter 76mm
Label reel outer diameter 360mm
Net weight 700kg
Machine size 2000×1300×1700mm(L×W×H)
Wooden case packing size 2100*1250*1740mm, 6.3m³
Control system Japanese Mitsubishi PLC


Machine Drawing:



Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg 0

Main Configuration:

N0. Name Brand
1 PLC control system Mitsubishi (Japan)
2 Stepper motor KINCO (Germany)
3 Stepper motor driver KINCO (Germany)
4 Frequency changers Delta(Taiwan)
5 Photoelectricity KEYENCE (Japan)
6 Label sensor FOTEK(Taiwan)
7 Touches screen WEINVIEW (Taiwan)
9 Bearings Japan
10 Stainless steel material 304SS
11 Aluminium alloy Surface anode gush arenaceous technology




Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg 1

Our Customer:



Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg 2

Big Bottle Double Sides Labeling Machine Coffee Bag Label Applicator 700kg 3
